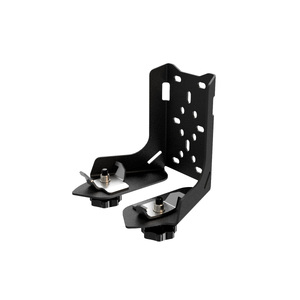

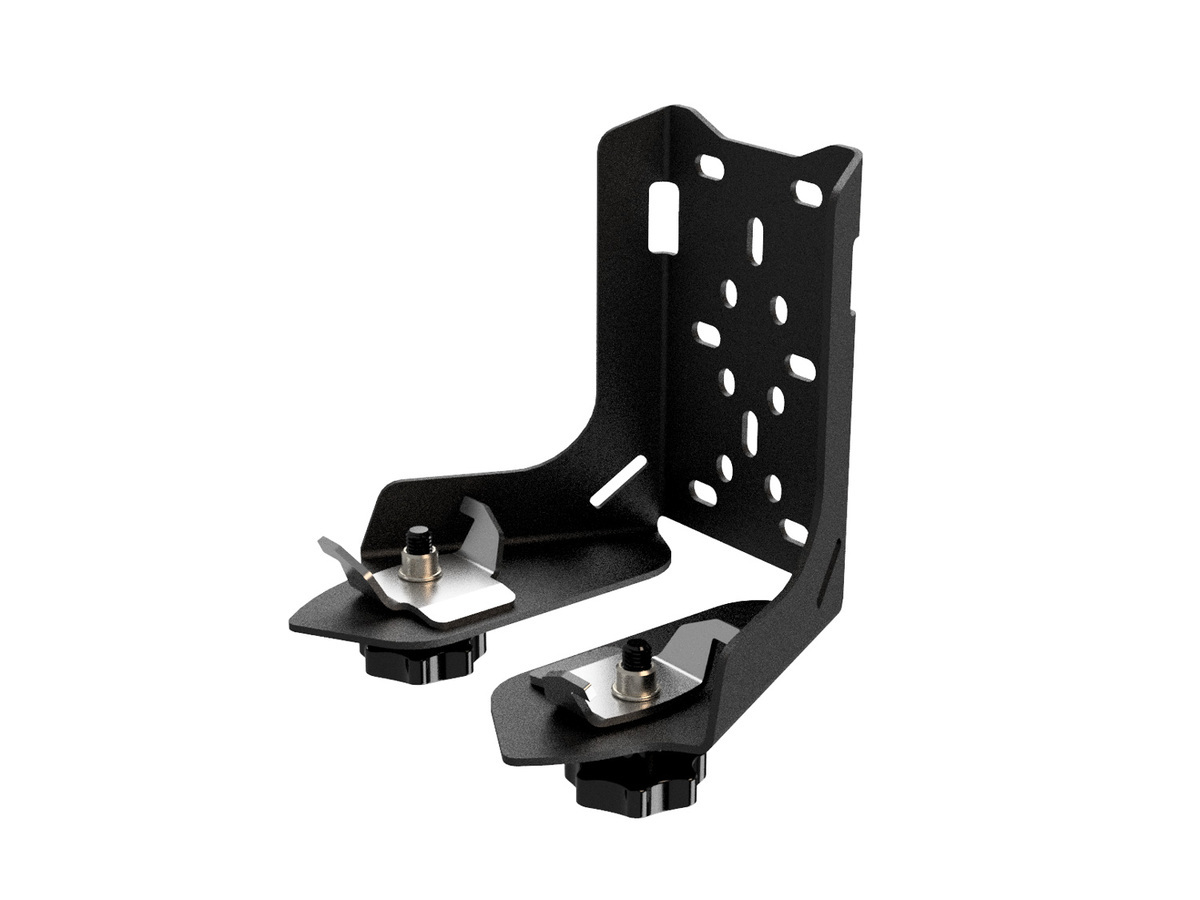

Kaon Out-Back Gas Bottle Mount

Out-Back Gas Bottle Mount to suit Rear-Mounted Spare Tyres

The ultimate way to mount your Gas Bottle, Out-Back.

Create a mount to suit your setup. Fixed to the Out-Back Spare Tyre Mount, adjust it up and down, in and out. Run it left, right or even above your spare tyre – with the Out-Back Gas Bottle Mount, it's all up to you.

Features:

• Side mounting on your spare tyre allows you to still run a rear bin bag or factory reversing camera.

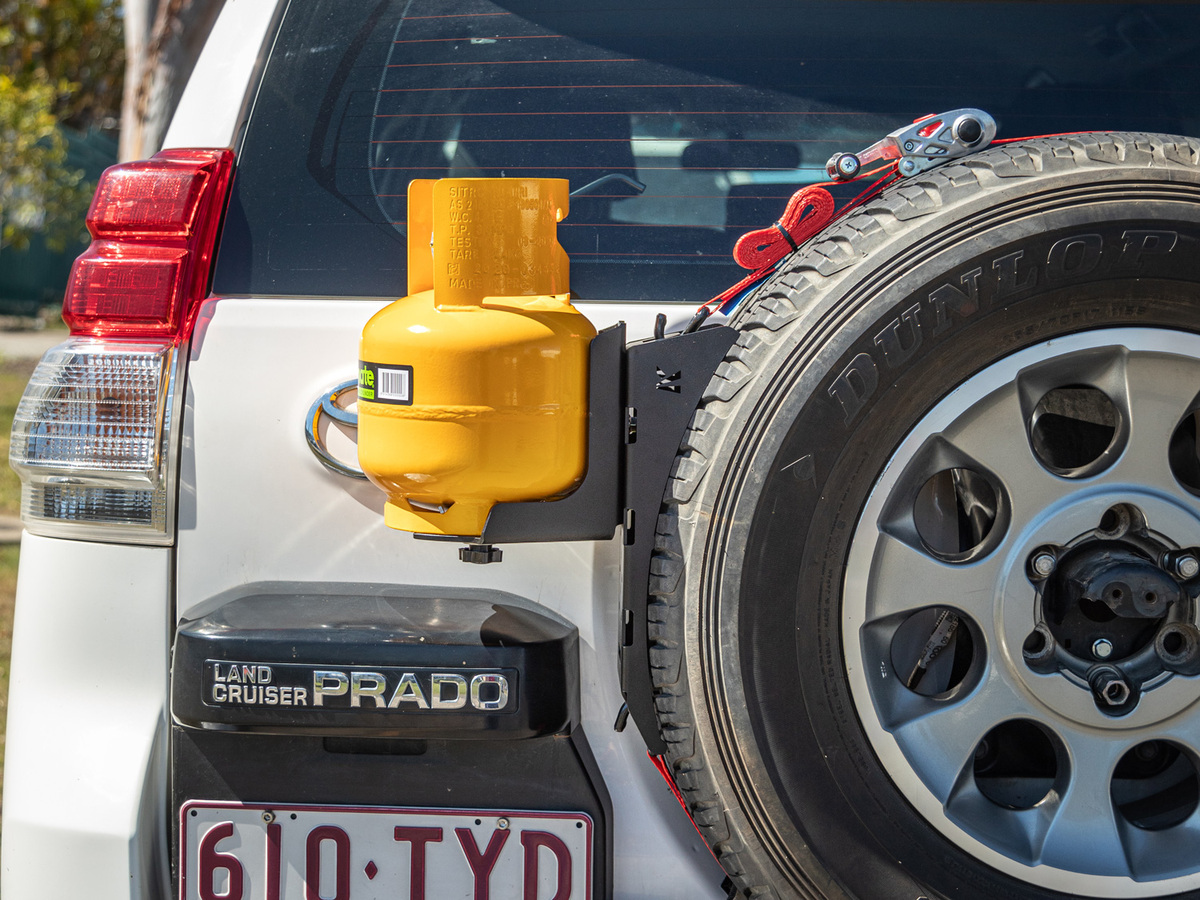

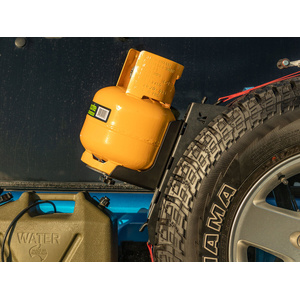

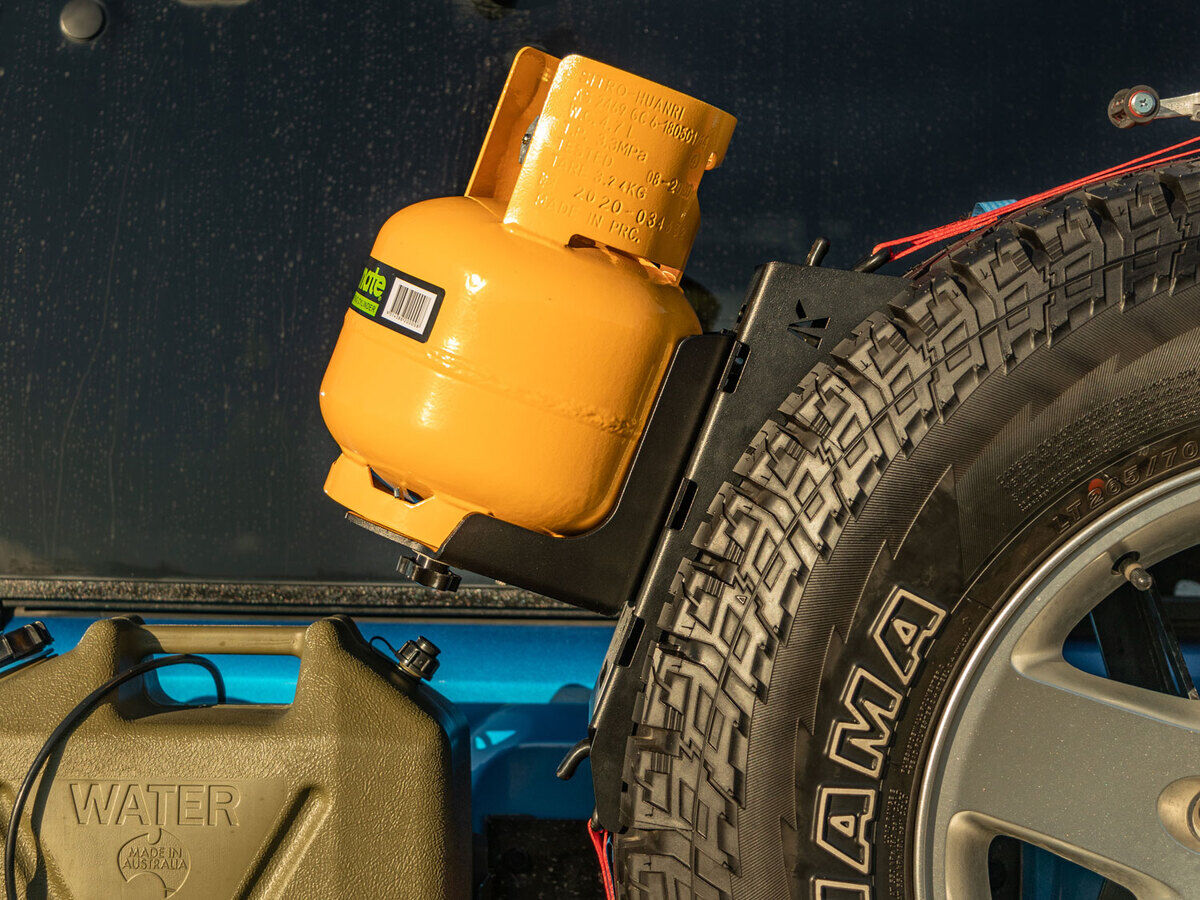

• Gas Bottle sits elevated and flush with the sidewall of the tyre, ensuring it’s located safely within your setup.

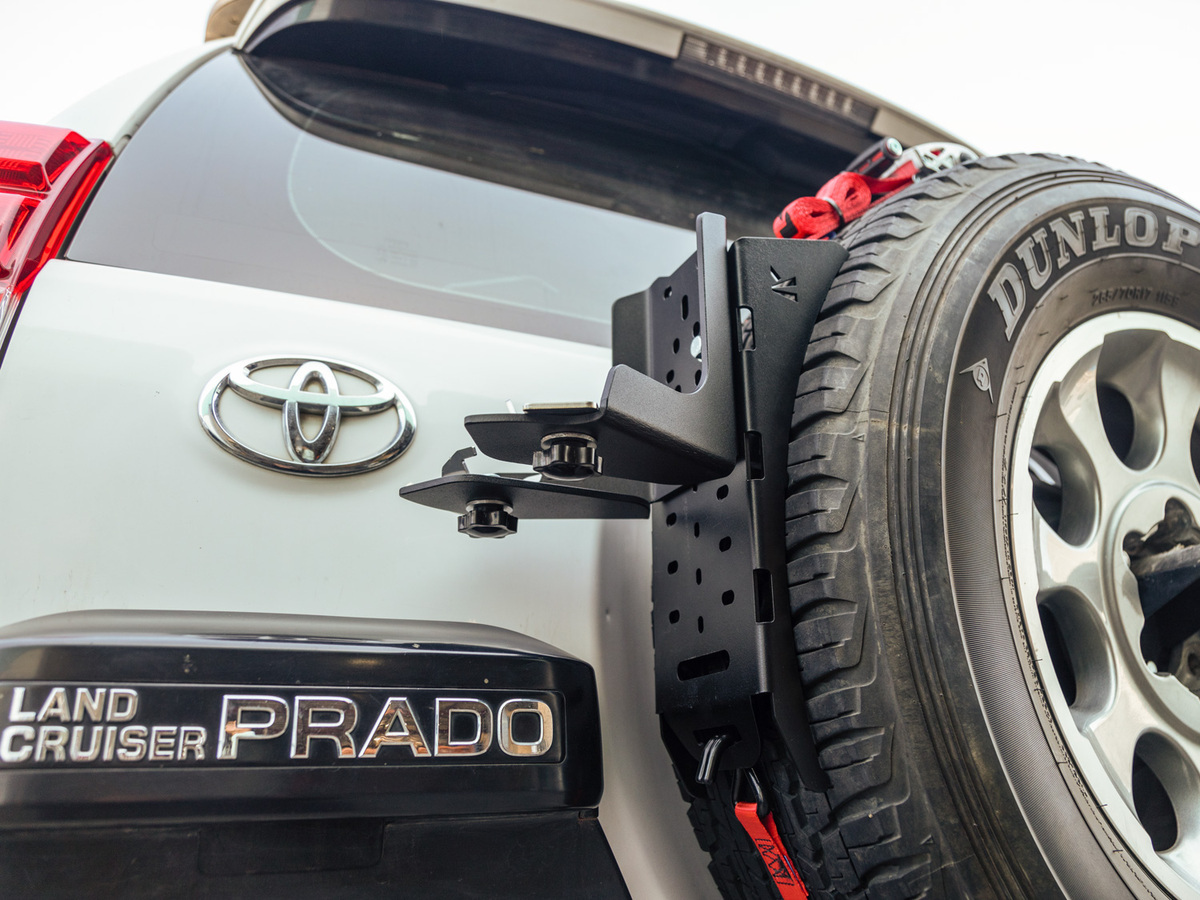

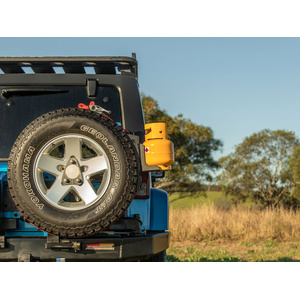

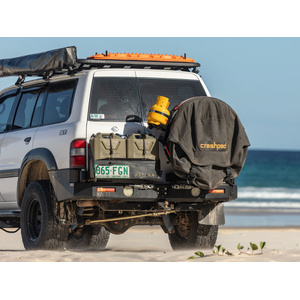

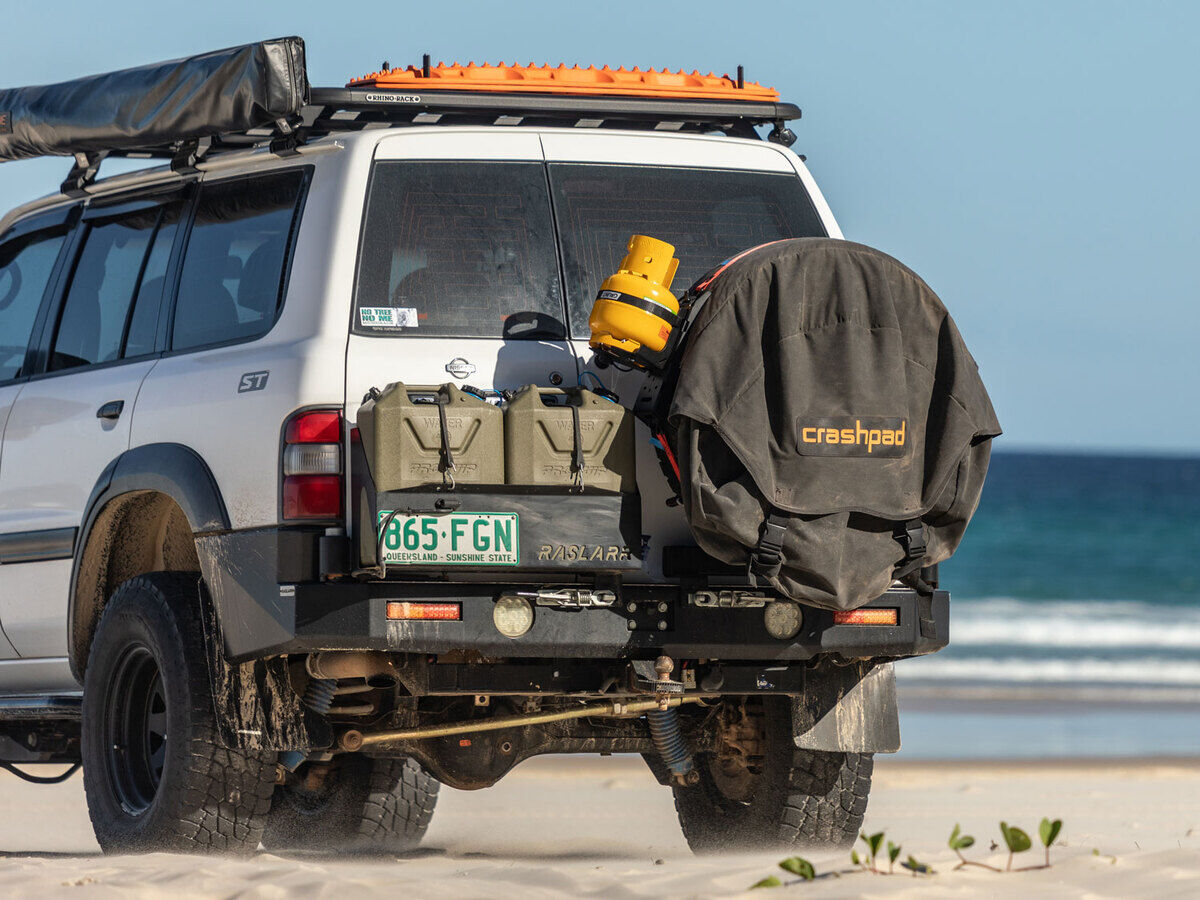

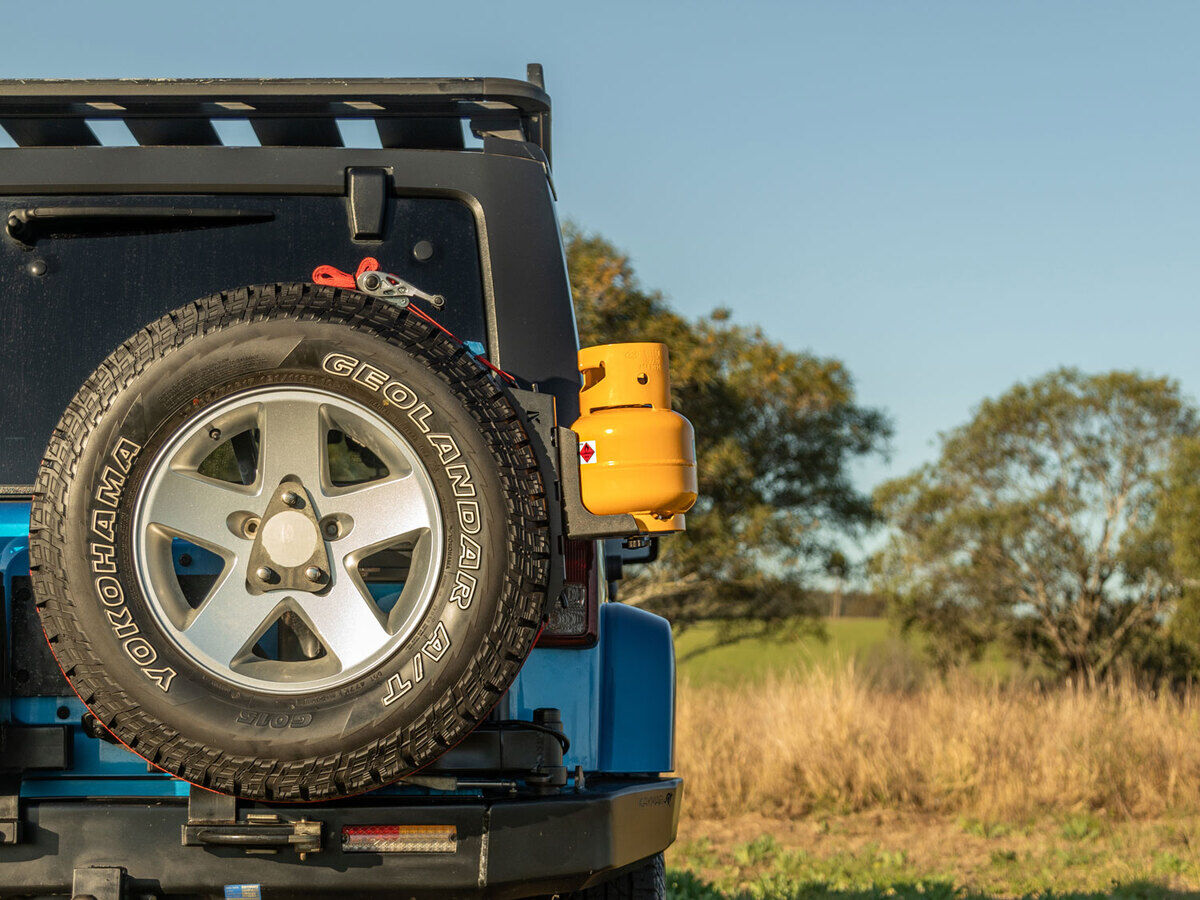

• Can be used in multiple positions, depending on the placement of your spare. Place it on the left-hand side, right-hand side or even horizontally above the tyre.
• Secure thumb screw mounts for toolless removal of the gas bottle, whilst two sets of slots for straps provide additional securing options.
• Positioned at an accessible height on the Spare Tyre.
• Perfect for those who use their camp kitchen at the back of the vehicle.
• Made from 3mm 304 Stainless Steel, powder coated in a durable textured matt black finish that will blend in with your tyre and won’t rust.

Compatibility:

• Suits 1.25kg & 2kg Companion & Gasmate LPG Gas Cylinders. See images or FAQ for bottle dimensions.
• Compatible with rear-mounted spare tyres from 28-37”.
• Compatible with most vehicles when mounted above the tyre.

Before purchase or install/use:

• Check your local jurisiction for laws and regulations regarding the transportation of gas bottles. Kaon have contacted and collated information from all Australian states and territories, here.
• Ensure clearance between the product and vehicle, with the door both open and closed.

Includes:

• 1 x Out-Back Gas Bottle Mount
• Optional: 1 x Out-Back Spare Tyre Mount and 1 x Rola Titan Ratchet Strap – Select your preference for with or without the tyre mount above

Australian Designed, Made and Owned.

How do I store my Gas Bottle correctly on the Gas Bottle Mount?

To ensure safe storage on your rear spare wheel, the gas bottle must be stored in the correct orientation. To store in the correct orientation, the valve of the gas bottle must always be higher than the base to prevent leakage.

What types of Gas Bottle are compatible with the Out-Back Gas Bottle Mount?

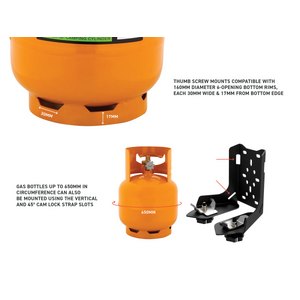

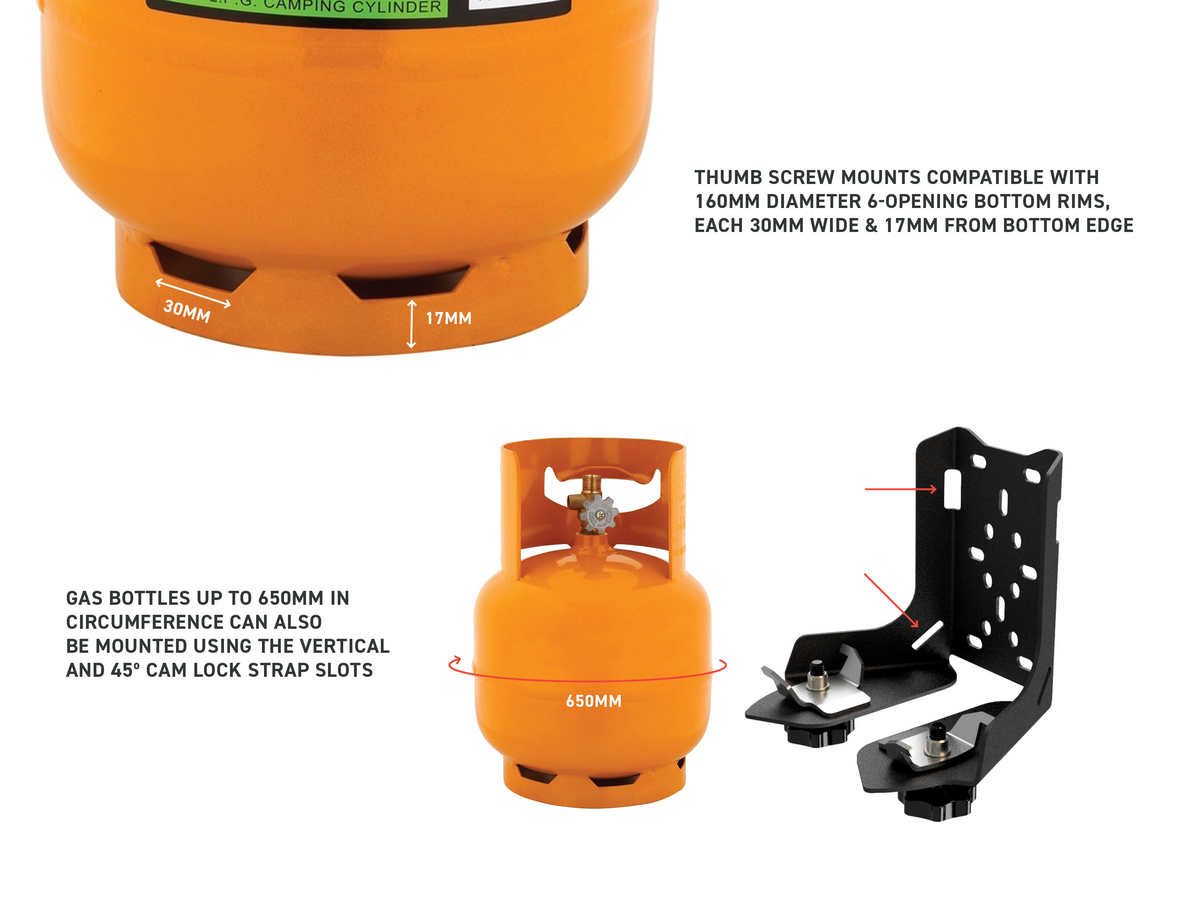

The provided Thumb Screw mounts are compatible with 160mm diameter 6-opening bottom rims, with holes 30mm wide and 17mm from the bottom edge.

Other Gas Bottles up to 650mm in circumference (205mm diameter) can also be mounted using the vertical and angled cam lock strap slots.

What vehicles is the Out-Back Mount compatible with?

The Out-Back mount compatibility is as follows. Please note that the Out-Back range is not compatible with factory spare wheel covers, such as those found on the Prado and Pajero.

What clearance is required for the Out-Back Gas Bottle Mount to be used?

260mm of clearance is required from the edge of the tyre at the centre point, in order to mount the Out-Back Gas Bottle Mount.

When used with the Spare Tyre Mount, this clearance needs to be maintained when the tyre is in all positions, i.e. when the door or rear bar is both closed and open.

Due to this clearance, the Out-Back Gas Bottle Mount is not compatible with side mounting with some Barn-door models, as the bottle either blocks entry to the passenger side door handle or cannot open fully without fouling on the driver's side taillight.

The Out-Back Gas Bottle Mount and Out-Back Spare Tyre Mount weigh a combined 3kg. They hold up to a 2kg Gas Bottle (total weight 3.6kg), so when full the entire mount will clock in at 6.6kg.

The mounting platform on the Out-Back Spare Tyre Mount measures 280x120mm.
