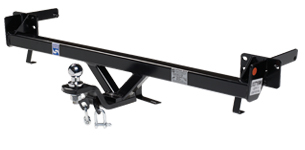

Hayman Reese 1250kg Towbar Kit for TOYOTA Hilux 83-05 4D UTE (01583KIT)

SKU code: 01583KIT

This Hayman Reese Towbar is designed to suit the TOYOTA Hilux 4D UTE from 01/10/1983 to 01/04/2005.

This Towbar is rated to a capacity of 1250kgs with a ball weight capacity of 90kgs.

Light Duty Towbars (Class 2)

The Hayman Reese Class 2 light duty towbar is typically rated up to 1200 kg and is a well engineered solution for light towing and mounting bike racks.

Like all Hayman Reese towbars, the Class 2 towbar is designed for easy installation by experience fitters and the utmost reliability.

Hayman Reese Class 2 towbars have an industry leading ball-mount tongue made from thicker high-grade steel compared to other brands. Class 2 towbars have a bolt-on tongue that attaches to the crossmember using two bolts.

All Hayman Reese towbars come with the following extras included as standard:

 +  Lifetime warranty
 +  Tow ball and rated D shackles
 +  MetalShield’??ƒ?§, Hayman Reese's unique two-stage surface protection
 +  Vehicle specific plug-and-play trailer wiring - SmartClick’??ƒ?§
 +  Specifically designed for each vehicle and tested under static and dynamic conditions
 +  Fully compliant with Australian Design Rules and exceeding AS 4177 specifications

A1 Roof Racks are proud to offer Hayman Reese and also offer a complete range of towing accessories including; adjustable trailer ball mounts, drop-shanks, trailer ball mount storage bags, lockable hitch pins, and even bike racks that bolt straight on.

Vehicle Fitment Information

Vehicle Make: TOYOTA

Vehicle Model: Hilux

Vehicle Date Range: 01/10/1983 - 01/04/2005

Vehicle Variant: 4D UTE TOYOTA HILUX ALL 4WD MODELS

Vehicle Specific Notes: All 4WD models 1983/10-09/1997. All 4WD models without bumper step 09/1997-04/2005 vehicles built between 10/1983-09/1997 have a maximum rating of 1500kgs and 150kgs and for vehicles built between 10/1997-04/2005 they have a 1800kgs and 180kg rating

Capacity Information

Towing Capacity: 1250kgs.

Ball Weight Capacity: 90kgs.

Installation Information

Requires a bumper cut? NO

Electronic Control Unit (if needed): No

Wiring Tips: wire to rear of taillight and run separate to other flasher

Kit Inclusions

This listing includes the following components

Towbar Part Number: 01583

Wiring Harness: Yes

Electronic Control Unit (ECU): No

Towball: Yes

SKU 01583KIT
Brand Hayman Reese
