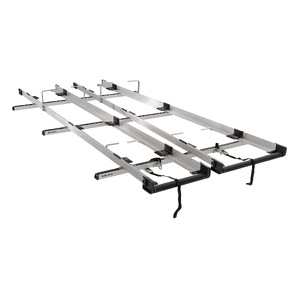

Rhino-Rack Multislide Double 3.0m Ladder Rack System for TOYOTA Hiace Gen 5 LWB 2DR Van (03/2005-05/2019) - JC-01036

SKU code: JC-01036-1

This roof rack solution is specifically designed to suit a TOYOTA Hiace Gen 5 LWB 2DR Van (03/2005-05/2019).
This kit includes all fitting components required for installation.

Rhino-Rack's JC-01036 is comprised of:

  • MS30M - Quantity: 2
  • LR470 - Quantity: 1
  • LR680 - Quantity: 1
  • RL150S10 - Quantity: 3

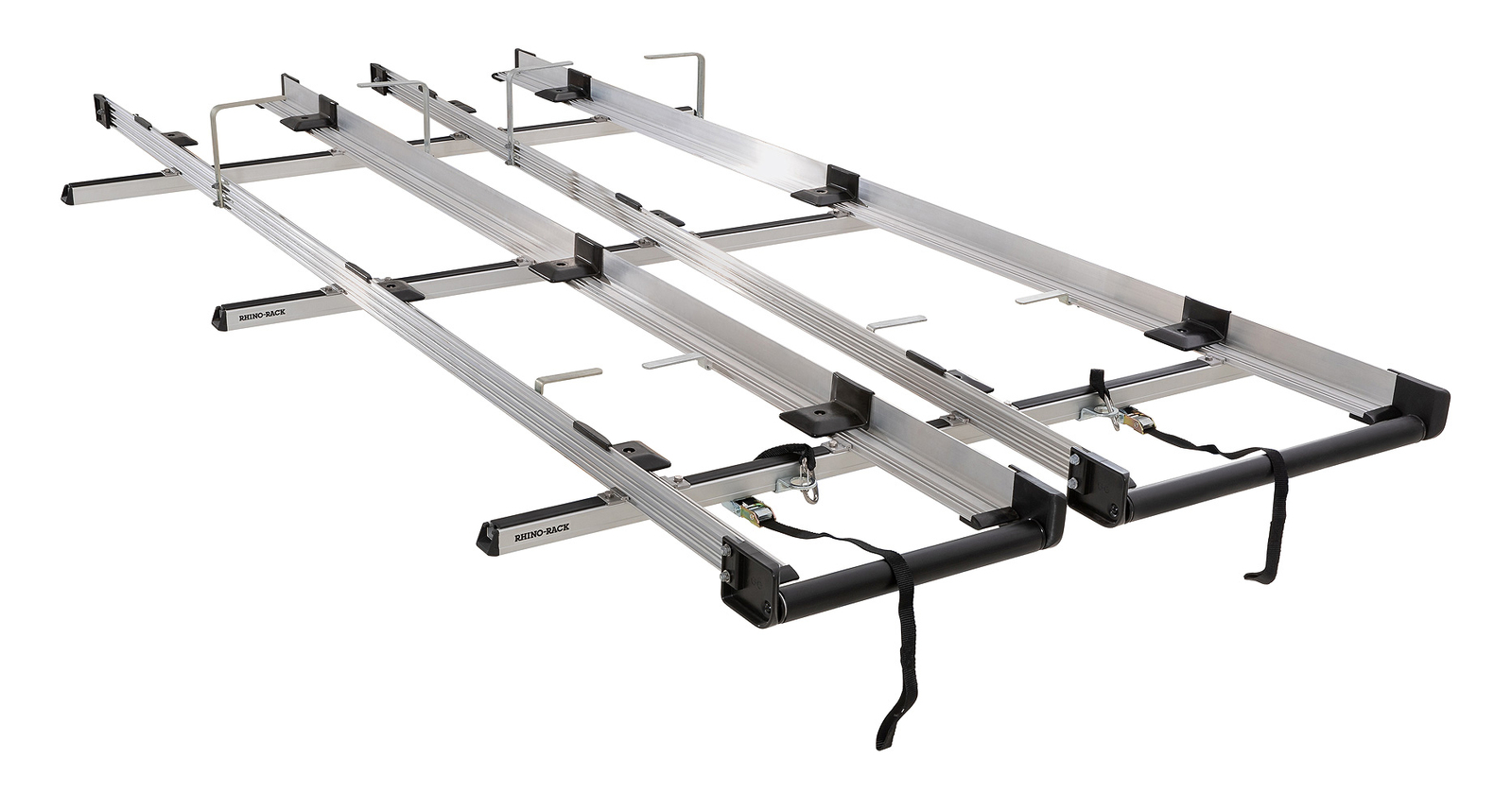

The Multislide Double Ladder Rack System allows you to carry a step ladder as well as an extension ladder on your vehicle's roof safely and securely. The Multislide systems have a rear roller to assist loading and unloading your ladders effortlessly.

RL Gutter Mount Legs

Rhino-Rack's RL Gutter Mount Legs are specifically designed for vehicles with external rain-gutters. Offering one of the strongest mounting options, the RL leg is well suited to harsh conditions.

  • Rhino-Rack's Gutter Mounts retain their load rating off-raod.
  • Amongst the easiest legs to fit, you'll be on the road in no time
  • Highly adaptable design allows you to customise your system.
RL Gutter Mount Legs

The ladder racks are mounted on the Rhino-Rack Heavy Duty crossbar system so you can rest assure that your ladders will be transported safely with you wherever your next job is. Built from anti-corrosive materials, the ladder rack system can withstand all weather conditions.

Ladder Rack 1

  • Roller width is 680mm / 27 inches wide
  • Suitable for 3m / 9.8ft step ladders

Ladder Rack 2

  • Roller width is 470mm / 18.5 inches wide
  • Suitable for 3m / 9.8ft extension ladders

Ladder hoops and ladder straps are also provided to ensure that the ladders are stable and well fastened when in transport.
It is recommended that the maximum carrying capacity per ladder rack is 42kg / 93lb.

Bar Colour Silver
Length 3.0m
Num Of Bars 3
Ladder Rack MS Series
Including Conduit Without Conduit
SKU JC-01036-1
Model # JC-01036
Brand Rhino-Rack
