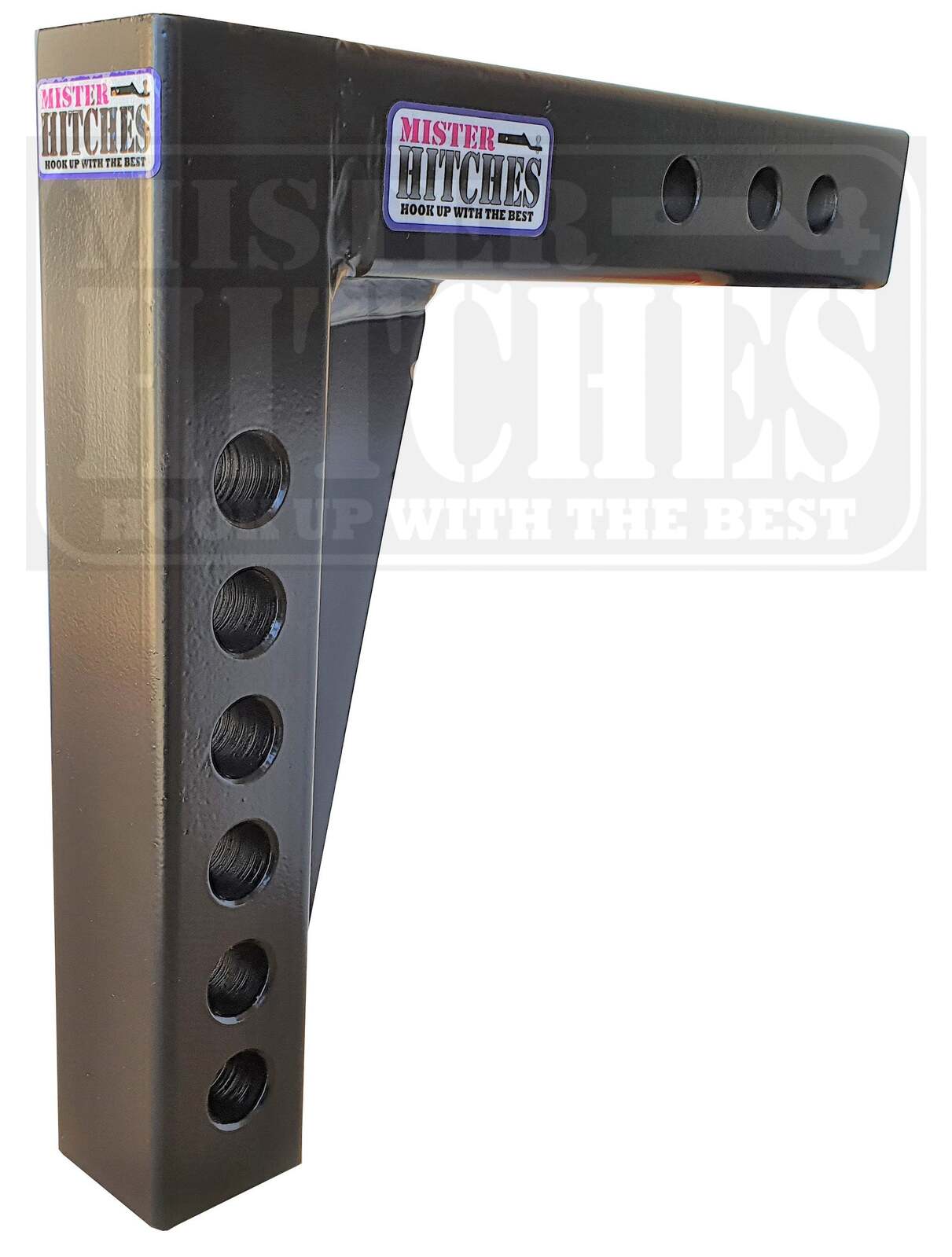

The Mister Hitches long shank is designed to be an optional but essential component in weight distribution systems when you need additional height or drop. Its three-pin hole design allows for various adjustments and caters to different towbar receiver setups, including short shank receivers found on Ford Rangers. The shank is built to withstand the demands of towing and is rated for heavy loads.
Features
- Optional Long Shank: This shank is an optional accessory when you need extra height or drop for your weight distribution system. It is designed to provide additional flexibility in adjusting the height of the system to match your towing setup.
- Compatibility: The shank is designed to be compatible with Mister Hitches Weight Distribution Systems and the Multi-Hitch Mix 'N' Match System.
- Material: The shank is made from solid steel, ensuring durability and strength.
- Adjustment: It features three hitch pin holes for greater adjustment options. The pin hole distances from the end of the shank are as follows:
- 1st Hole: 50mm
- 2nd Hole: 82.5mm
- 3rd Hole: 125mm
- Drop: The drop measurement, from the top of the shank to the top of the Weight Distribution Hitch (WDH) ball platform, is 135mm.
- Rise: The rise measurement, from the top of the shank to the top of the WDH ball platform, is 254mm.
- Shank Overall Height: The overall height of the shank is 286mm.
- Shank Shape: The shank is solid steel with a square shape, measuring 50.8mm.
- Rating: The shank is rated at 4.5T (4.5 tons) and is designed for use as part of your weight distribution system setup.
- Versatility: This long shank can also suit a short shank of a Ford Ranger tow bar, providing adaptability for different towing setups.
| SKU | MHWDS1011 |
|---|---|
| Brand | Mr Hitches |
