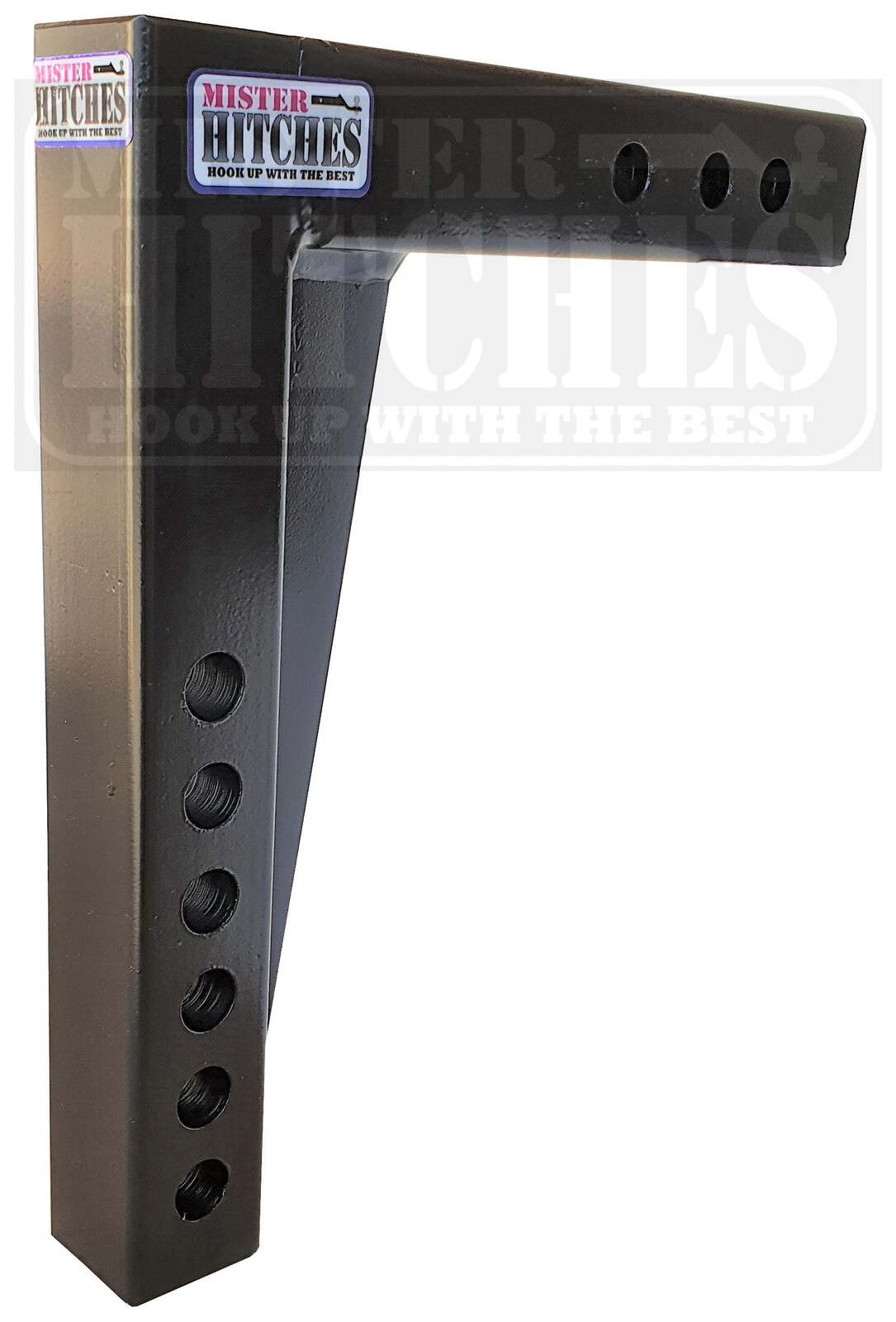

This extra long shank is designed to offer maximum adjustability, making it suitable for a wide range of towing configurations. Its three-pin hole design provides ample flexibility, and it can also be used with short shank receivers found on Ford Ranger tow bars. The shank is built to be durable and can handle heavy loads, ensuring a secure and reliable towing experience.
Features
- Optional Extra Long Shank: This shank is an optional accessory when you need extra height or drop for your weight distribution system (WDH). It is designed to provide additional flexibility in adjusting the height of the system to match your towing setup.
- Compatibility: The shank is compatible with Mister Hitches Weight Distribution Systems and the Multi-Hitch Mix 'N' Match Systems.
- Material: The shank is made from solid steel, ensuring durability and strength to handle the demands of towing.
- Adjustment: It features three hitch pin holes for greater adjustment options. The pin hole distances from the end of the shank are as follows:
- 1st Hole: 50mm
- 2nd Hole: 82.5mm
- 3rd Hole: 125mm
- Drop: The drop measurement, from the top of the shank to the top of the WDH ball platform, is 229mm.
- Rise: The rise measurement, from the top of the shank to the top of the WDH ball platform, is 330mm.
- Shank Overall Height: The overall height of the shank is 355.6mm.
- Shank Shape: The shank is solid steel with a square shape, measuring 50.8mm.
- Rating: The shank is rated at 4.5T (4.5 tons) and is designed for use as part of your weight distribution system setup.
- Versatility: This extra long shank can also suit a short shank of a Ford Ranger tow bar, providing adaptability for different towing setups.
| SKU | MHWDS1014 |
|---|---|
| Brand | Mr Hitches |
