Description
Specifications
Reviews

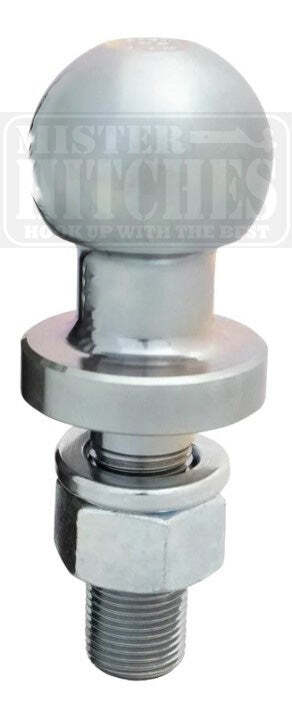

The Mister Hitches Zinc Plated Tow Ball is a high-quality and compliant towing component that provides the necessary strength and durability for safe towing operations. Its load capacity, corrosion resistance, and compliance with Australian Standards make it a reliable choice for various towing applications.
Features
- Load Capacity: The tow ball has a load capacity of 3500kg, making it suitable for a wide range of towing needs.
- Ball Diameter: The tow ball features a standard 50mm diameter, which is compatible with most couplings and trailers.

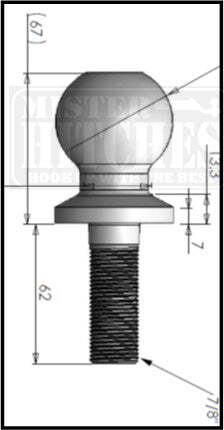

- Shank Diameter: The shank of the tow ball has a diameter of 22mm (7/8 inches), ensuring a strong and secure attachment.
- Shank Length: The shank measures 62mm in length, providing ample threading for attachment to a compatible tow bar or hitch.
- Zinc Plated: The tow ball is zinc plated, which not only enhances its appearance but also provides corrosion resistance, making it suitable for outdoor and all-weather use.
- Base to Top of Ball: The distance from the base of the tow ball to the top of the ball measures 67mm, providing ample clearance for most couplings.
- Salt Spray Tested: The tow ball has been salt spray tested to international standards (ASTM B117) for 100 hours, ensuring its durability and corrosion resistance.
- Compliance: The tow ball complies with Australian Standards AS4177-2 and ADR62, ensuring its safety and performance according to industry standards.
- Tested Strength: It has been tested at 85Kn (8,668kg) for 10 seconds, meeting the test requirements of AS4177-2, and it is stamped to meet compliance requirements.
- CNC Machined: The tow ball is CNC machined to ensure precision and quality.
- Torque Nut: The tow ball comes with specific instructions to torque the nut to 225Nm, ensuring a secure and safe connection.
- Packaging: The tow ball is packaged in a poly bag with a barcode and description label for easy identification and inventory management.
| SKU | MHTB50ZB |
|---|---|
| Brand | Mr Hitches |
