Lightforce - X Grille to Suit Ford Ranger PX2 2015 - 2018

SKU code: IG150RKIT

Lightforce

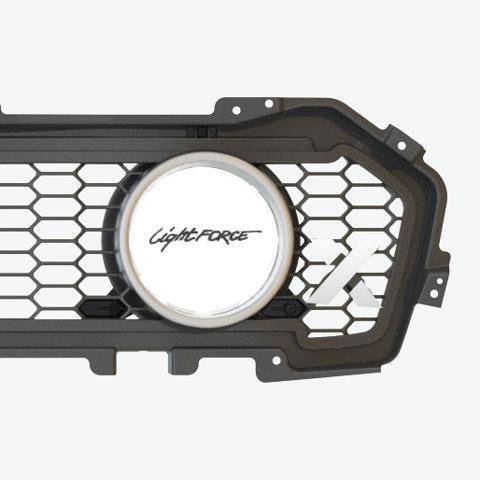

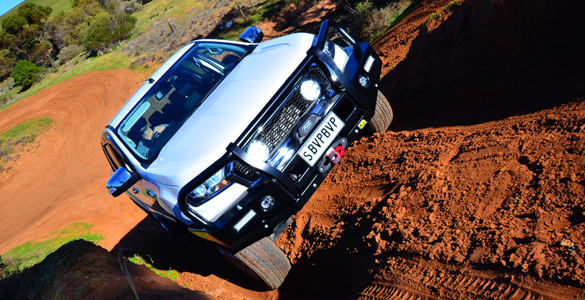

Designed by AX4 and powered by Lightforce, the X Grille is the newest innovation in driving lights. It is a complete replacement radiator grille with an integrated pair of high-performance Venom LED driving lights. The first X Grille kit, to suit the popular Ford Ranger, is a custom package that looks awesome as if it came straight from the factory. It eliminates the need for bull bars, nudge bars or bulky mountings to add driving lights.

The car's original grille is removed, and only minor modification is required to install the X Grille. There’s no exposed wiring, fastenings are out of sight and secure under the bonnet, and the lights are fully supported and maintain their full range of adjustability. Unlike some bull bars and other light mounting solutions, the X Grille does not affect the car’s safety rating or interfere with any of the sensors in modern vehicles.

Features

  • Reinforced, UV stable glass-filled nylon
  • High strength and shock-resistant
  • Vehicle collision avoidance compliant
  • Sleek, modern and innovative
  • Bright chrome trim
  • Weight: 1kg/2.2lb
  • 75W LED / 7850lm (raw) / 4407m (effective) for industry-leading output per light
  • 21 Lumileds LEDs per light operate at 5000K colour temperature reducing driver fatigue
  • CE Certified
  • Vertical and horizontal beam adjustment provides optimal alignment
  • IP68 & IP69K rated / Gore water-proof membrane to protect against water and dust ingress
  • Reverse polarity / overload protection
  • Colour temperature: 5000K
  • LED lifespan: 50,000 hours
  • Operating temperature: -40C to 63C

Included in the Box

  • 1 x X Grille for Ford Ranger PX2 models

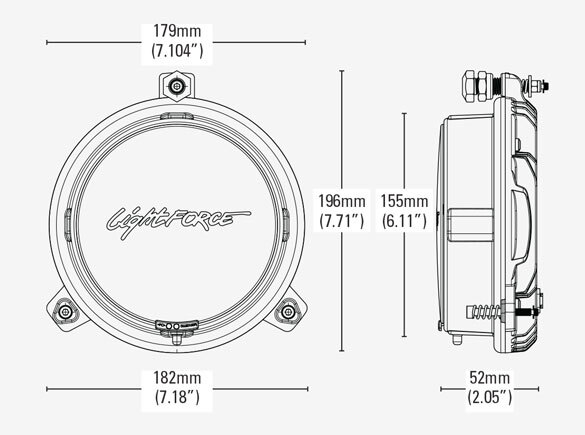

  • 2 x Integrated Lightforce Venom LEDs with clear spot filters
  • 1 x Full plug-and-play wiring harness & switch
  • 1 x Dedicated plug-and-play headlight patch harness
  • 1 x Installation instructions.
SKU IG150RKIT
Barcode # 9335712032409
Brand Lightforce
