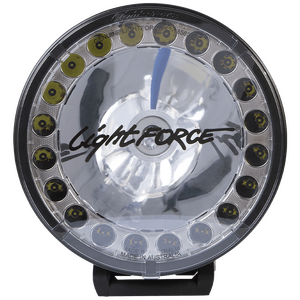

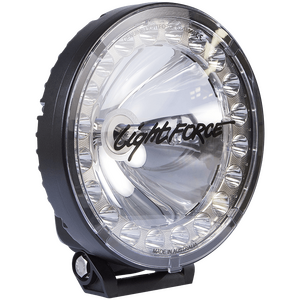

The vehicle specific Lightforce HTX2 Hybrid Driving Light Kit includes everything you'll need for the ultimate Lightforce set-up.
Made right here in Australia to the highest standards possible, HTX2 has no comparison on the road and off the beaten track. It doesn’t just turn heads, it redefines performance lighting.
The unique combination of a long-distance HID and the equivalent of a 20-inch LED lightbar in one unit provides unparalleled power and light spread at 1 lux at over 1.65km.
With an all-new aluminium housing that’s fully sealed the HTX2 isn’t just dustproof and water resistant, it’s fully waterproof up to 1 metre. No matter what situation you find yourself in, HTX2 will get you through.
* The kit includes the standard mounting brackets. Most vehicles will require mounting tabs found on Bull Bars, Nudge Bars, and Roof Racks.
Features

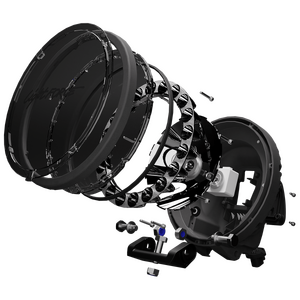

- New robust aluminium one-piece housing
- Increased surface area for better heat management
- Slimline design to fit most modern bullbars
- Profile compatible with more frontal crash avoidance systems
- More efficient, true 5000K OEM spec Phillips D1S HID bulb
- Reliable German OEM spec Osram ballast for reduced EMI
- Shielded cables surpassing EMC compliance with CE certification
- Redesigned seals including a fully integrated waterproof plug
- Superior ingress protection surpassing IP68 and IP69K level
- New pre-treatment and UV stabilised powder coated finish
- Repositioned mounting point with redesigned captive Nyloc nuts
- Improved balance, rigidity and strength
- Twenty domeless 5000K Lumileds Luxeon ZES LEDs
- Superior performance and reduced glare
- The combination of HID and LED offers amazing performance
- 1 Lux at over 1,650 metres and .25 Lux at over 3,200 metres
- CRI of 70 plus for better colour rendering and less eye fatigue
- Genuine Gore waterproof membrane with mechanical seal
- Reversible robust mounting base as proven across our LED range
- Over, under and reverse voltage and thermal overload protection
- Comprehensive installation instructions for easy DIY installation
Included in the box
- 2x Lightforce HTX2 Hybrid Driving Lights (HTXMK2)
- 2x Lightforce HTX2 Clear Spot Filters (HTXMK2SFL)
- 2x Lightforce HTX2 Black Covers (HTXMK2BC)
- 1x Lightforce Dual Switching Wiring Harness (LFDLHDS)
- 2x Reversible mounting bracket and hardware
- 2x Matching 4 pin waterproof harness adaptor
- 1 x User Instructions

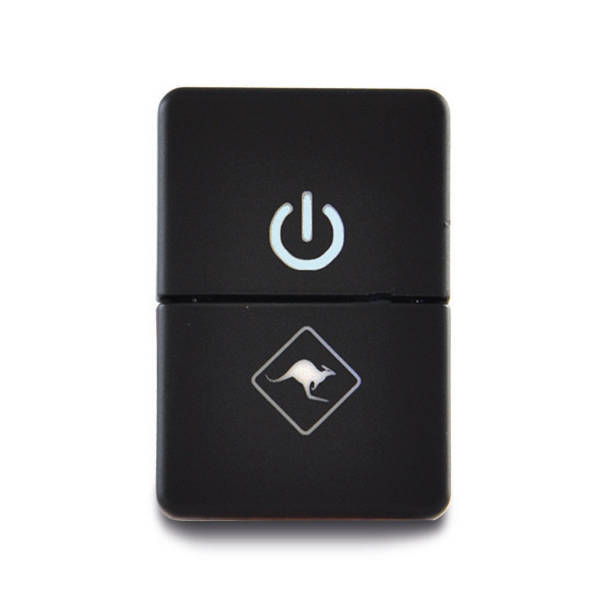

- 1x Vehicle Specific Dual Switch + Harness

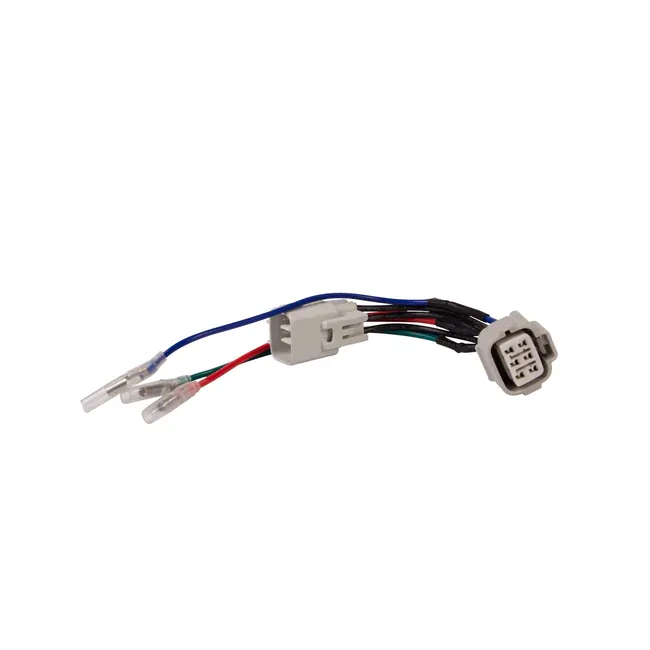

- 1x Vehicle Specific Patch Harness
Specifications
- Globe Type LED | HID
- Distance 1 Lux at 1650m (Pair)
- Distance 0.25 Lux at 3,300m (Pair)
- Effective Lumens 8050
- Raw Lumens 8400
- Colour Temperature 5000K
- CIR 70
- Current Draw 11.5Amps @12V
- Voltage 18V - 30V
- Wattage 130W
- Ingress Protection Rating IP68 and IP69K

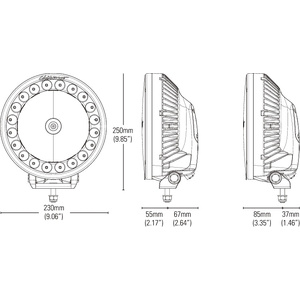

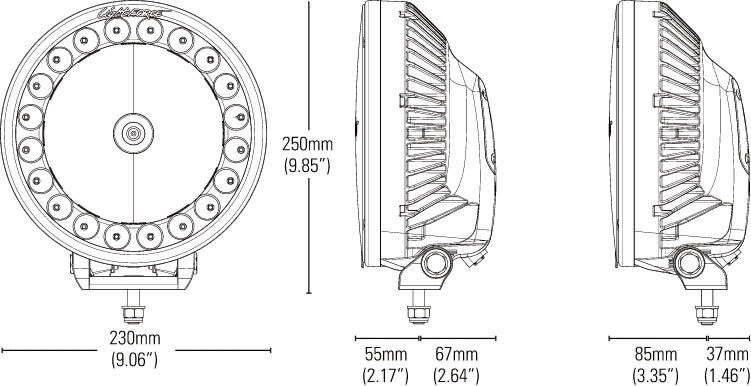

- Diameter 230mm
- Weight 2.3kg including bracket
| SKU | HTXMK2PK-3 |
|---|---|
| Brand | Lightforce |
