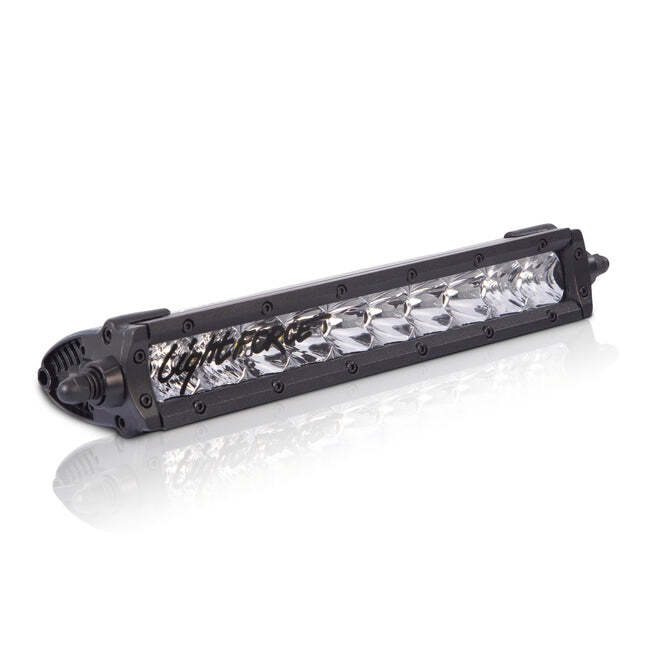

The Lightforce LED Bar range is rugged and impact resistant, featuring a hard coated polycarbonate lens for durability and a waterproof rating to IP69K. The LED Bar range utilises high output European LEDs tuned within the reflectors to produce unparalleled performance in their class. With multiple mounting options available and complete with a waterproof Deutsch connector and full wiring harness, the Lightforce LED Bar range delivers powerful performance in a simple package.
Features
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware

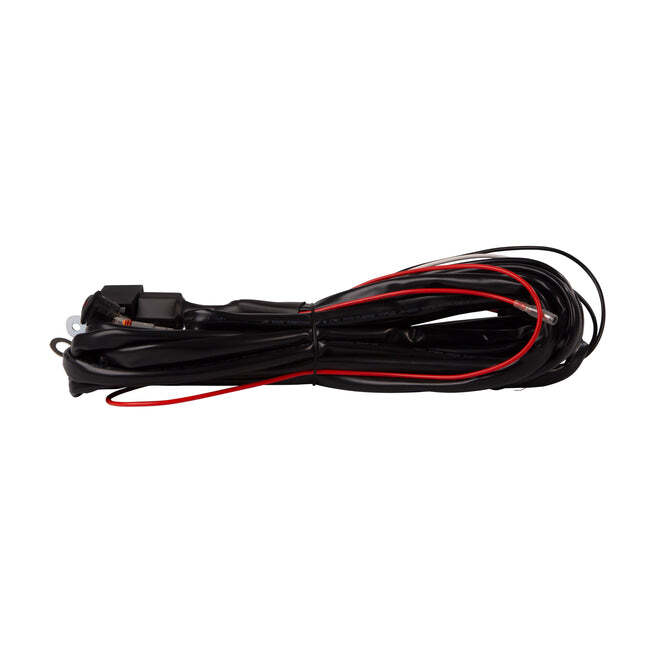

- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
Specification
- Globe Type: LED
- Distance: 1 Lux at 283m
- Effective Lumens: 2072
- Raw Lumens: 2800
- Colour Temperature: 5000K
- Current Draw: 3.4Amps at 13.2Volts
- Voltage Rating: 10V - 36V
- Wattage: 50W
- Ingress Protection Rating: IP69K
- IP69K rated to protect against moisture / contaminant ingress
- Hard coated, scratch and high impact resistant polycarbonate lens
- Custom moulded strain relief connector fitted to military spec cable
- Genuine Gore® waterproof membrane with mechanical seal
- Over, under and reverse voltage protection
- Pulse width modulation thermal management circuitry
- Protected against electromagnetic and radio frequency interference (RFI)
- Stainless steel brackets and mounting hardware
- Comprehensive wiring harness
- Broad operating voltage range of 10 ~ 36 volts
- Input cable length: 450mm (17.72″).Wiring Harness Length 2.5m (92.43″)
- Deutsch waterproof connectors
- RoHS certified
- 3 Year warranty.
| SKU | LEDB10C |
|---|---|
| Barcode # | 9335712031570 |
| Brand | Lightforce |
