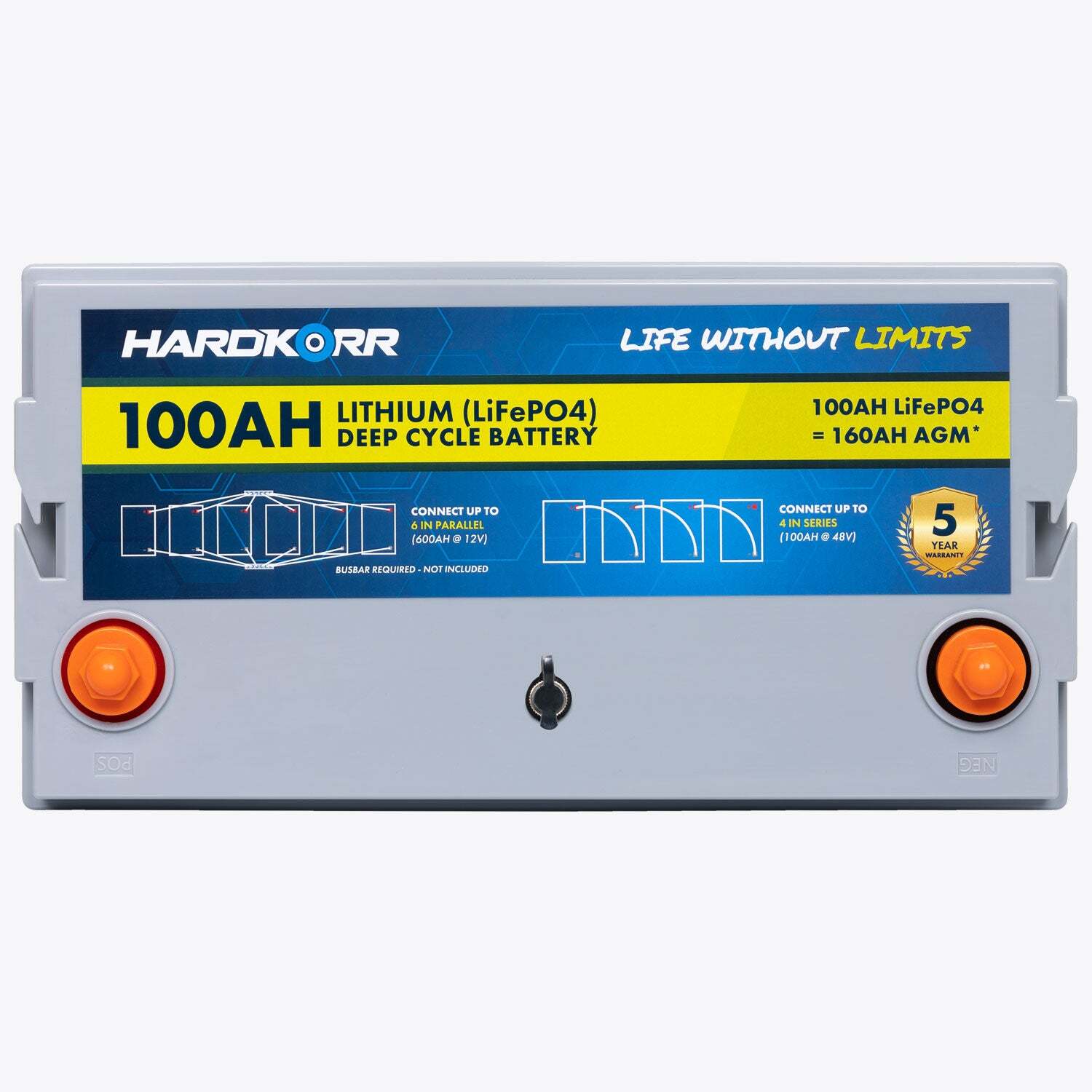

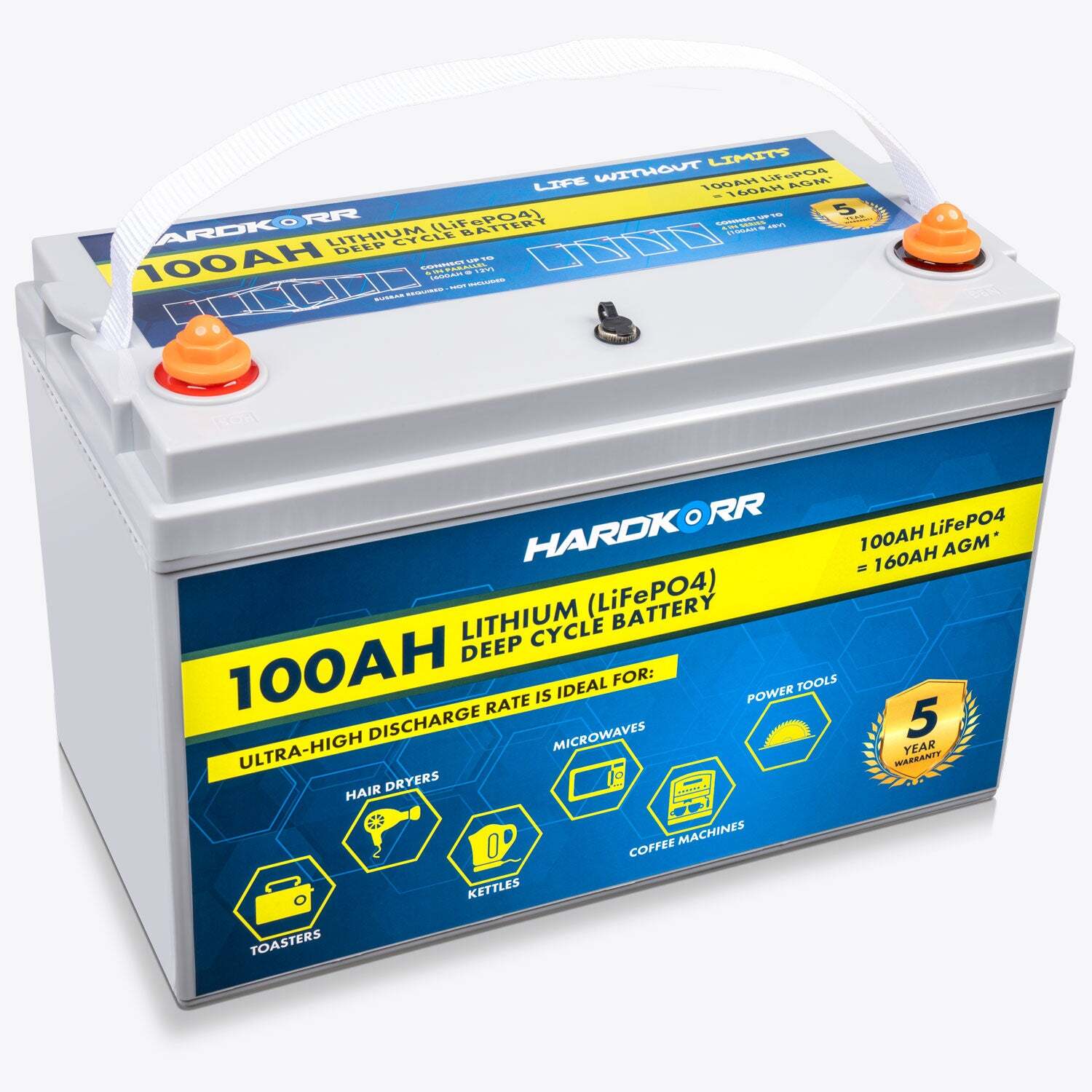

Hardkorr's latest 100Ah lithium (LiFePO4) deep-cycle batteries are the most reliable, long-lasting batteries we have ever manufactured. With outstanding performance characteristics and full international certification, you’ll never be caught short of 12v power on your 4wding and camping adventures again! Coming in a standard Group 27 (N70) size case, they are will fit into standard-sized battery boxes and trays.
These batteries are made using best-in-class robotic manufacturing processes with rigorous quality assurance (including serialised tracking) and pre-shipment cycle testing. We even store the test report for each battery for later reference if needed. That’s why we can now confidently offer you a 5-year Australian warranty.
Top Quality Cells
HardKoor's 100Ah deep-cycle lithium batteries are constructed from the highest quality 26700 high-discharge cylindrical cells. The cells are carefully matched to ensure the difference in internal resistance is less than 1mΩ and voltage difference is less than 5mV. They are then ultrasonically welded using automated equipment to ensure a strong connection is made between each cell, and encased in custom-molded ABS plastic cell holders to ensure reliability and consistency even when subjected to shock and vibration.
Wait… aren’t prismatic cells better?
Prismatic and cylindrical cells both have inherent advantages and disadvantages. Batteries which use prismatic cells are somewhat lighter than those with cylindrical cells, and are easier to manufacture due to having fewer connections between cells. Cylindrical cells, on the other hand, are usually more efficient in their energy usage, produce somewhat less heat and tend to be more reliable than their prismatic counterparts.
The improved cell reliability and efficiency of cylindrical cells are what made us decide, like Tesla and Rivian, to manufacture these batteries from cylindrical cells.
More usable power, longer life
When comparing batteries it is vitally important to understand the difference between nominal and C20 capacity. To reduce confusion and help to standardise the measurement of battery capacity, most reputable battery manufacturers will quote the capacity of their battery in amp-hours at C20 (also written as C/20), which means the number of amps the battery can deliver if discharged at a constant rate over a period of 20 hours.
Using this standard, a fully-charged battery with a capacity of 100Ah could deliver 5A of current per hour for a period of 20 hours before becoming fully discharged (5A x 20h).
Why upgrade to Lithium?
- Long cycle life: lasts up to 10x longer than Sealed Lead Acid (SLA) batteries
- More usable capacity: safely use up to 80% of usable capacity and 99% in an emergency (vs 50%/70% for SLA)
- Fast charging: charges up to four times faster than an equivalent AGM battery
- Light weight: About half the weight of an equivalent SLA battery
- Environmentally friendly: Non-toxic, contains no acid, can be installed in any direction
Specifications
- Nominal voltage: 12.8V
- Capacity (C5): 100Ah
- Max series/parallel config: 4S/6P
- Normal charge voltage: 14.4V ± 0.2V
- Standard charge current: 50A
- Max discharge current (constant): 100A (1C)*
- Max discharge current (pulse): 200A
- Discharge cut-off voltage: 10.0V
- Charge temperature: 0°C to 55°C
- Discharge temperature: -20°C to 60°C
- Storage temperature: 0°C to 45°C
- Ingress protection: IP64
- Self-discharge: <3% per month
- Weight: 12.0kg
- Dimensions: 330mm x 173mm x 216mm (Group 27)
- Certifications: UN 38.3, UL 1642, IEC 62133-2:2017, IEC 62619:2022, CE
| SKU | HKPBATL100C |
|---|---|
| Barcode # | 9350466001167 |
| Brand | HardKorr |
