Hardkorr 10" Hyperion Single Row Led Light Bar

SKU code: HKLB-HPR-10S

HardKorr

HardKorr's Hyperion light bars don’t just outperform all the others, they look the goods as well. With high and low beam modes, switchable orange and white daytime running light (DRL), and the ability to customise it with different coloured side inserts, you can make this light bar distinctly yours.

Quality LED Chips and Reflectors

Starting with the basics, this light bar is constructed with high-performance OSRAM OSLON SSL 150 LED chips. These premium chips are extremely efficient, supremely robust, resistant to corrosion and have a 150° viewing angle, which is very important in light bar applications where beam width is key.

They also have very low thermal resistance, which means they will remain cooler than other LED chips and their performance will not degrade with extended use. The 5700K colour temperature offers balanced, natural lighting for excellent visibility without causing eye strain from glare.

HardKorr have matched these chips with expertly engineered, vacuum-metallised polycarbonate reflectors, which allowed us to create a 180 degree overall beam angle. This means not only can you see far into the distance, but are also made aware of close-up hazards such as kangaroos in time to take evasive action.

Robotic Manufacturing

The housing and lens are robotically manufactured and assembled, ensuring the light bar is perfectly sealed against dust and water ingress, and they use the highest quality materials to ensure they’ll last for many years even in harsh conditions.

Intelligent Design

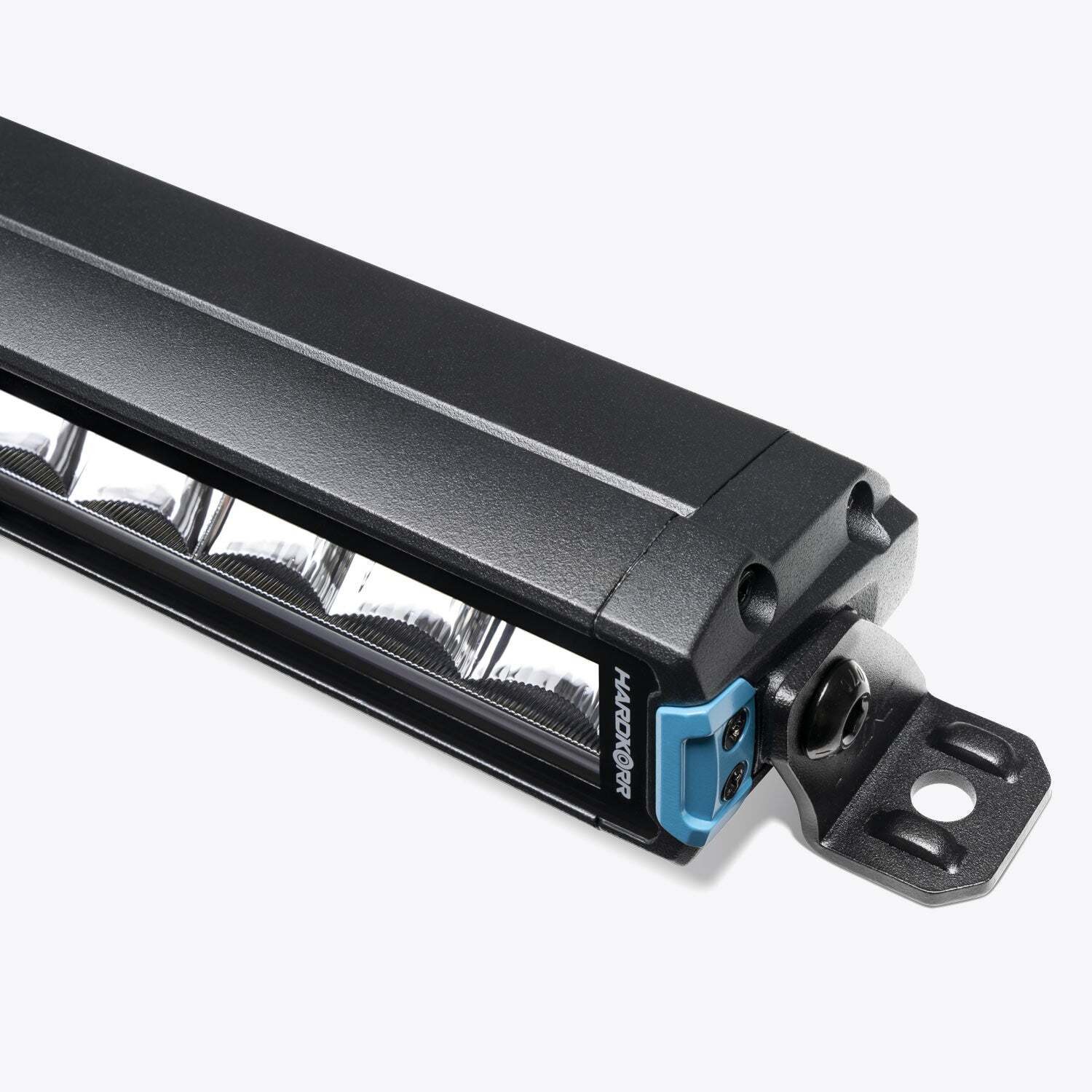

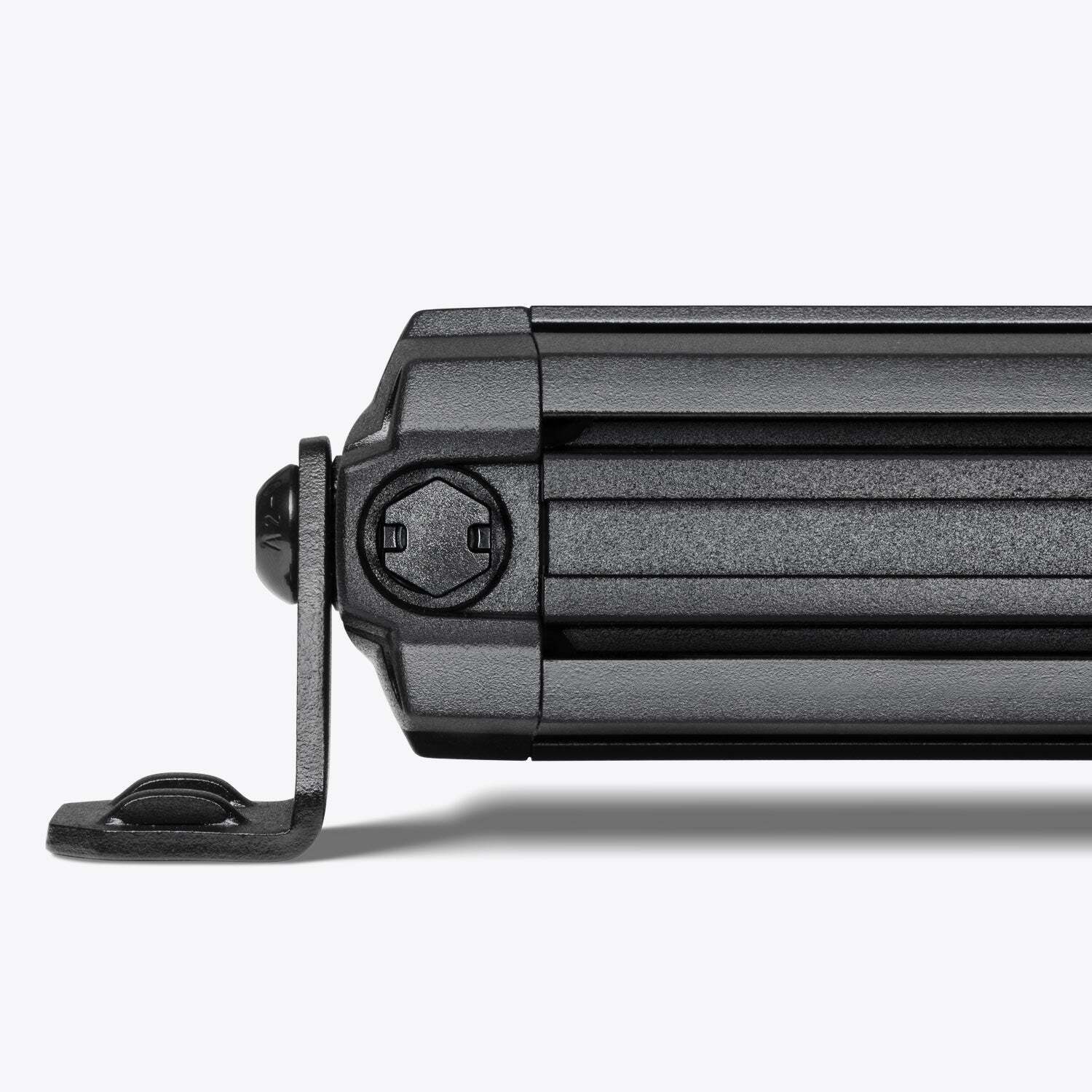

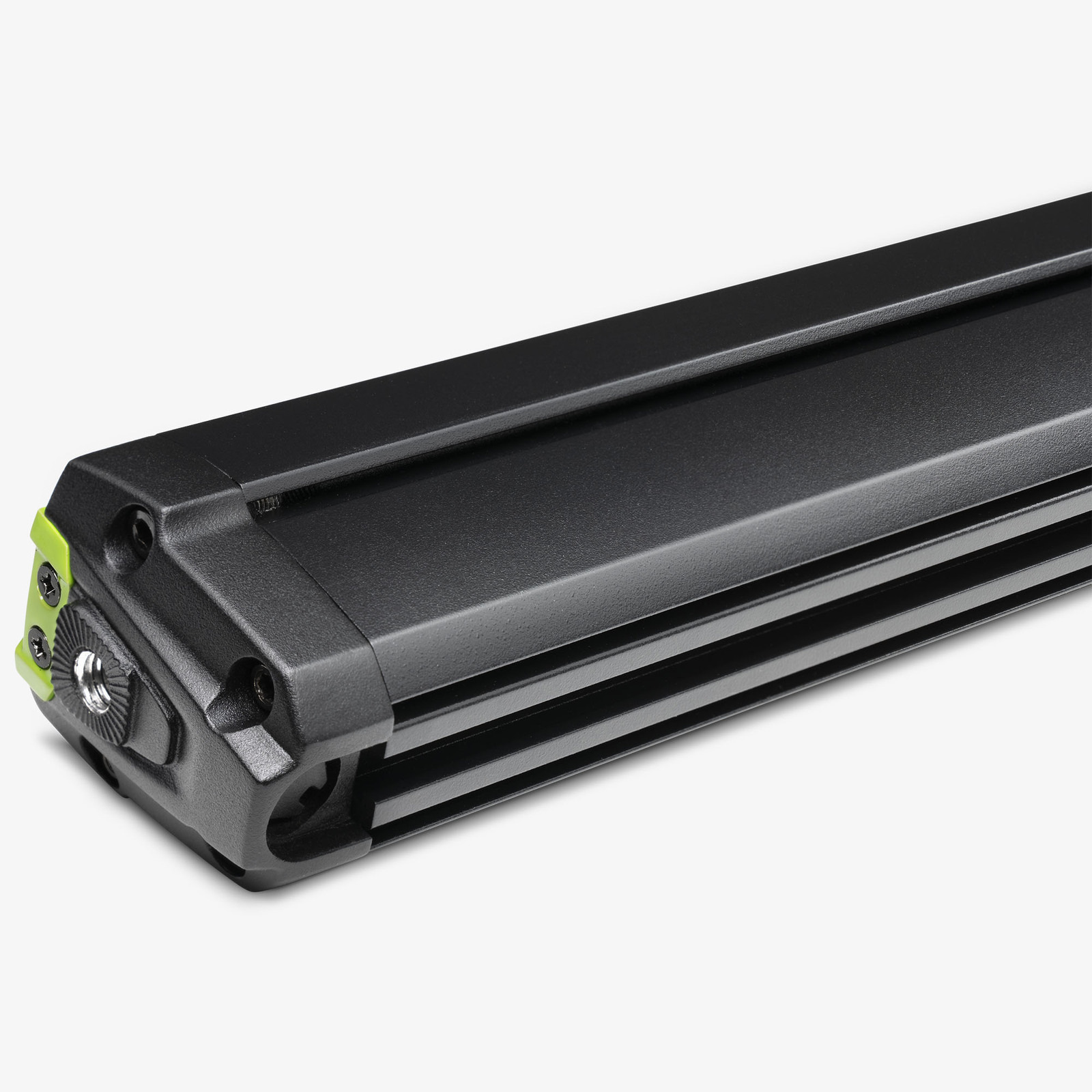

Because single row light bars are often used in tight spaces such as inside grilles and underneath roof racks, HardKorr have engineered their Hyperion light bars to be as thin as possible by minimising wasted space internally. When using the end-mount legs this bar is only 52.1mm high, and when using the under-mount legs it is still only 63.6mm high.

Extensively Customisable

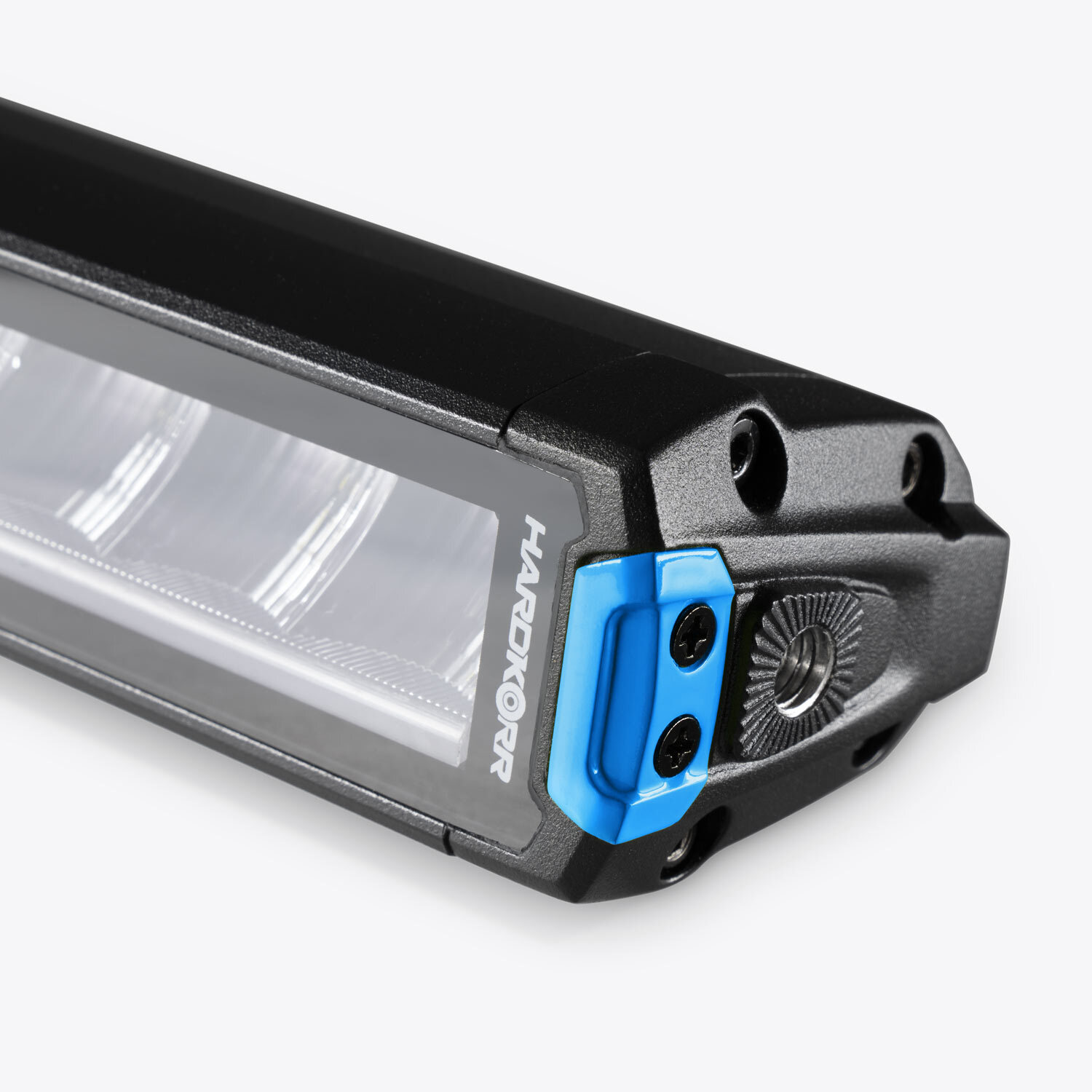

Finally, they’ve made sure there is plenty of customisability so you have the freedom to match this light bar to your vehicle and application. HardKorr have included three pairs of different coloured side inserts in the pack, and have another seven colour options available for separate purchase.

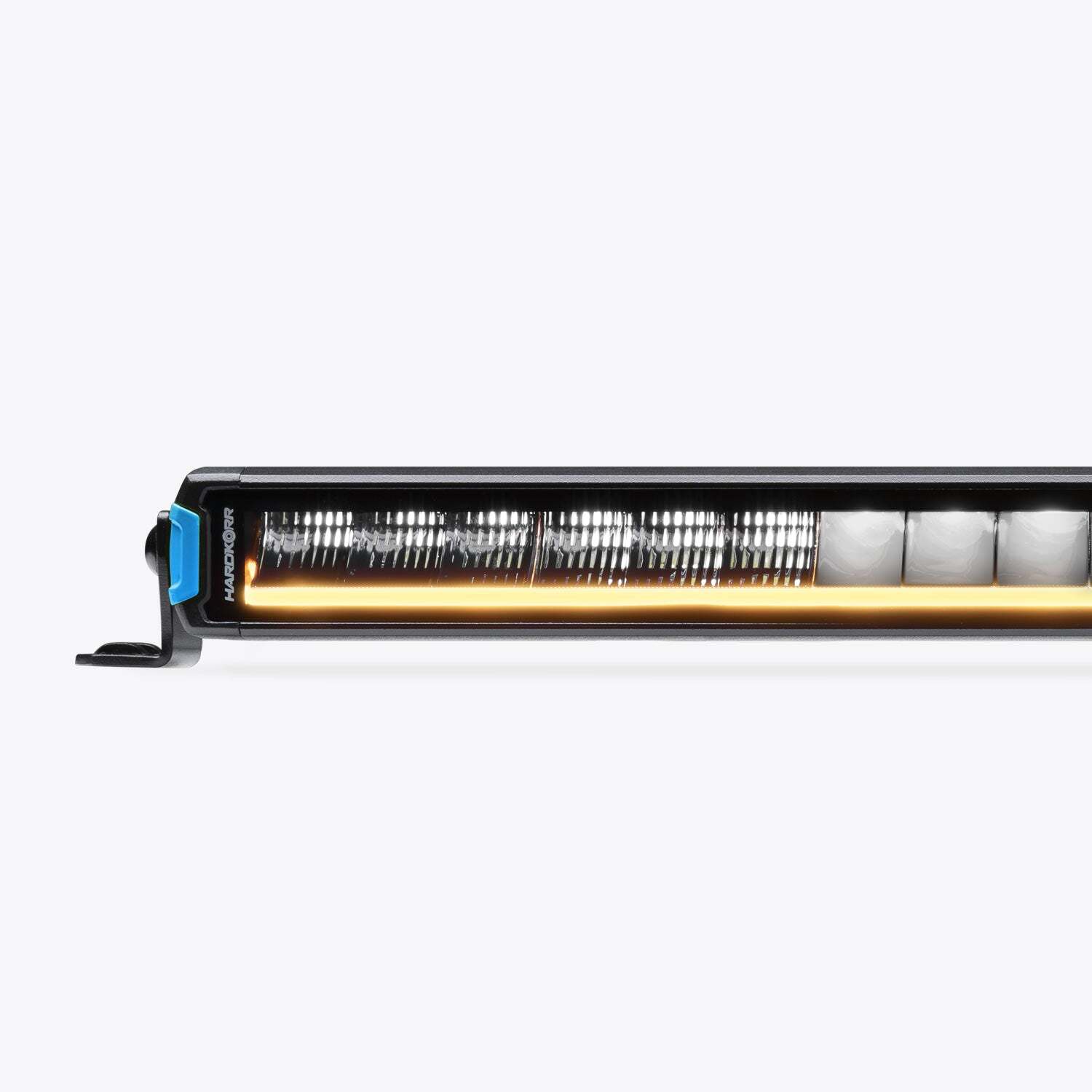

Additionally, each light bar can be switched between high and low modes, and you can also switch between orange and white daytime running lights (DRLs). For further protection and customisation, we also offer black, orange and clear covers for purchase.

The HardKorr Guarantee

All Hardkorr products are manufactured using the highest quality materials. They are confident that they are the most durable in the market and will give you many years of reliable service. HardKorr stand behind this product with a comprehensive 5 year Australian warranty

Specifications

Materials:

  • 6063 aluminium housing
  • UV hardcoated polycarbonate lens
  • Vacuum-metallised aluminium reflectors

LED Type:

  • OSRAM OSLON SSL 150

Power:

  • 45W

Beam Distance:

  • 1 lux @ 300m (high) / 1 lux @ 127m (low)

Output:

  • Raw: 3,780 lumens
  • Effective: 2,700 lumens (high) / 488 lumens (low)

Peak Intensity:

  • 90,000 candela

Colour Temperature:

  • 5700K

DRL (Daytime Running Light) Colour:

  • Settable orange / white

Operating Voltage:

  • 10 – 30V DC

Current Draw:

  • 12V: 3.09A (high) / 0.58A (low)
  • 24V: 1.6A (high) / 0.29A (low)

DRL Power Draw:

  • 0.25A @ 12V / 0.14A @ 24V

Operating Temperature:

  • -30°C to 65°C

Weight:

  • 0.8kg

Certifications:

  • CE, CISPR25, ISO 7637-2:2004

Pack Contents

  • 1x 10" Hyperion LED light bar

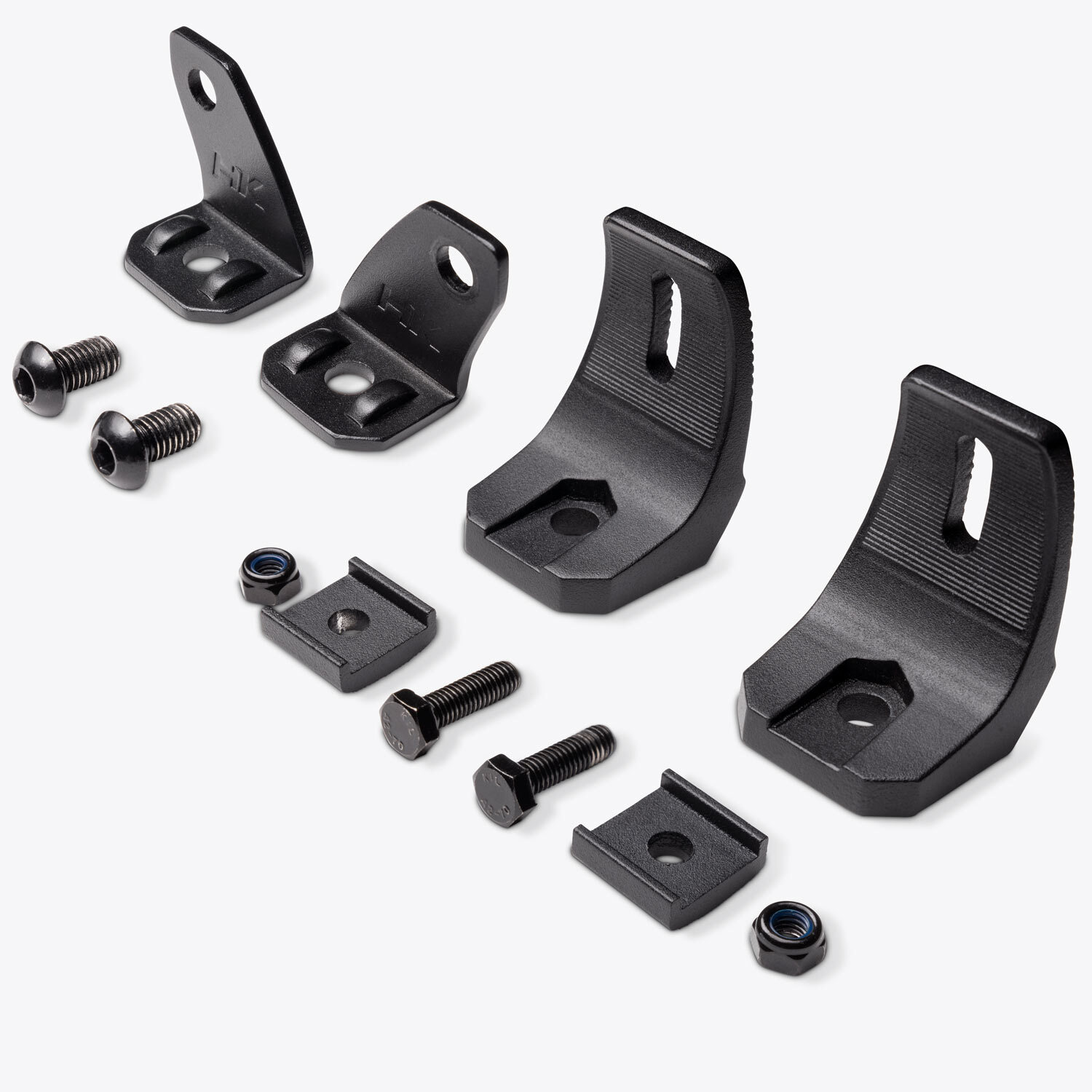

  • 1x Set end-mount legs
  • 1x Set under-mount legs

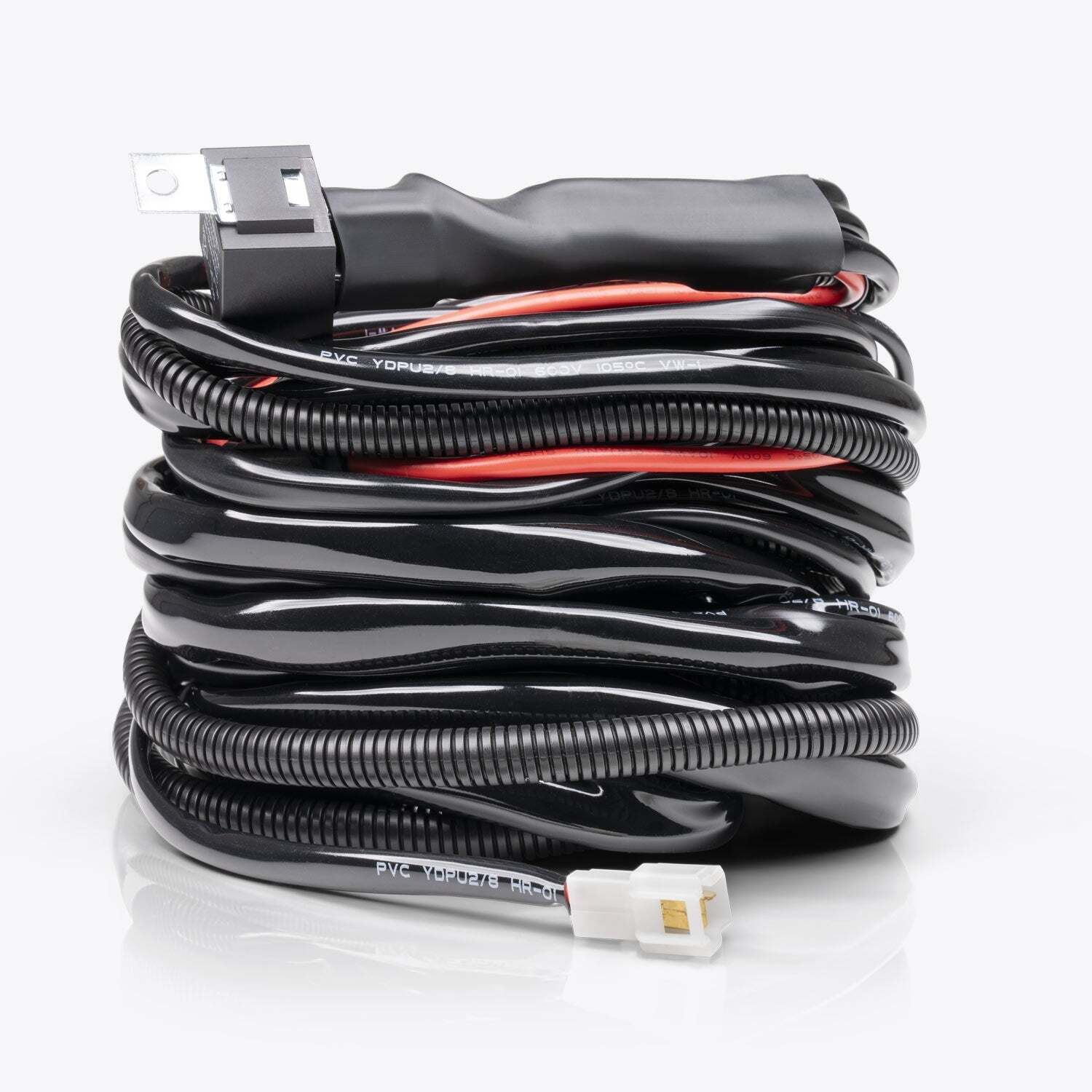

  • 1x Wiring harness

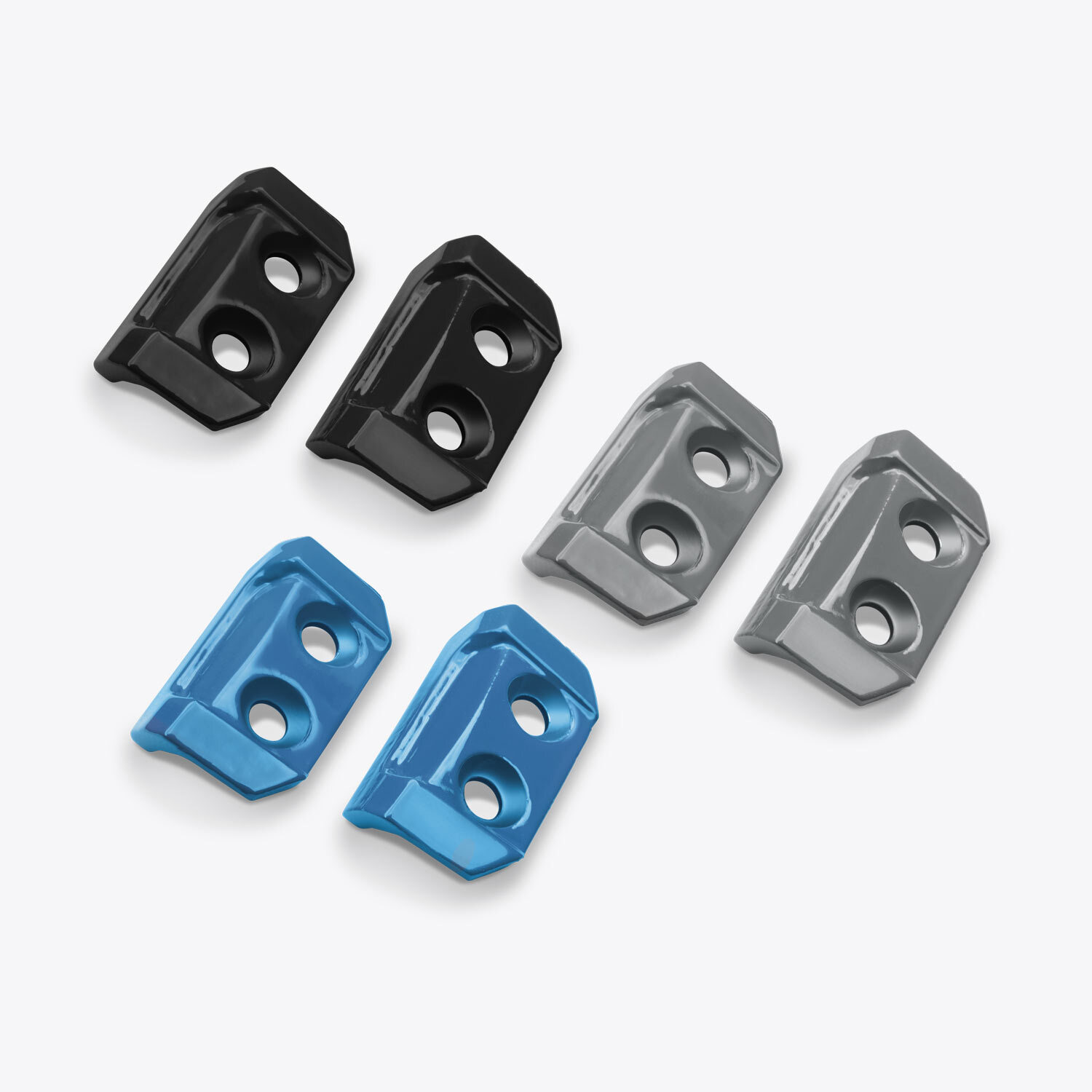

  • 3x pairs Coloured inserts (blue, black, grey)
SKU HKLB-HPR-10S
Barcode # 9350466004526
Brand HardKorr
