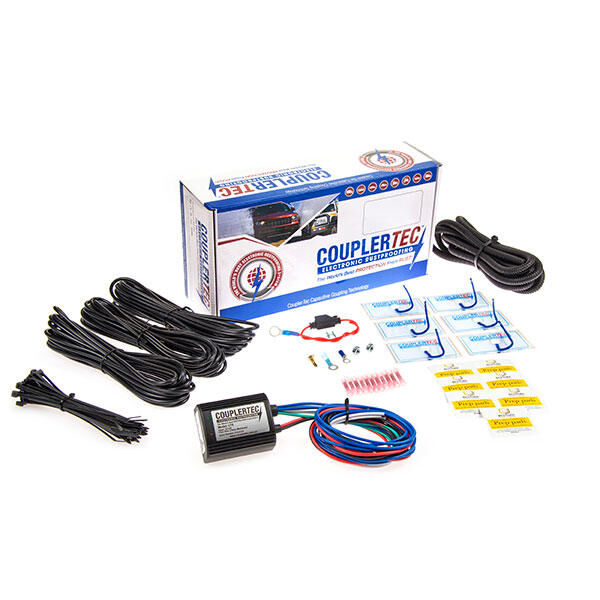

Couplertec CT6 Extreme Rust Protection

SKU code: CT6SFK

CouplerTec

This system offers the ultimate in protection. Specifically designed to protect Four Wheel Drive vehicles used by Mining Companies, Surf Clubs and Professional Fishermen, it will dramatically reduce corrosion on 4WD vehicles that are exposed to CONSTANT use within highly corrosive environments.

  • Protects 100% of the vehicles metal surface, inside and out*.
  • Helps stop paint from oxidizing and keeps the paintwork looking like new.
  • Removes static electricity from the vehicles surface.
  • Systems are Transferable.
  • Reduces maintenance costs associated with rust and corrosion.
  • Will slow or stop existing corrosion.

*Any metal component that is insulated from earth is not protected.

This system may also benefit 4WD vehicles that are suffering from minor rust problems. But remember, as good as this product is, it is not a miracle cure for badly rusted vehicles,  the more rust a vehicle has, the harder it is to stop.

  • Incorporates CouplerTec Capacitive Coupling Technology – The ONLY tried tested and proven technology to protect motor vehicles from rust and corrosion.
  • Solid State Electronics – Offers an indefinite life span.
  • Six Capacitive Couplers, each charged by their own dedicated circuit.
  • The CouplerTec module incorporates a microprocessor that employs a process called ‘Monitored & Controlled Performance’ – This is where the microprocessor monitors and controls the performance of the system, ensuring that it is operating at the optimum level. The module confirms that it is working correctly by way of a Green flashing LED, giving you peace of mind that your vehicle is being protected. Conversely, the system will also indicate the detection of a fault by way of a Red flashing LED. The system will reset after the fault has been rectified.

Technology

CouplerTec Capacitive Coupling

Voltage Requirement

12VDC

Minimum Voltage (Input)

11.5VDC

Maximum Voltage (Input)

15VDC

Power Draw

24mA ~ (Typical)

Number of Circuits

6

Voltage Output Per Circuit (VP)

400V (Peak) and from 200V (RMS Typical)

Minimum Operating Frequency

200 kHz

Carrier Frequency

20 kHz

Capacitance

80 pF (Typical Average)

Maximum OperatingTemperatures

-30 ~ +85 deg C (Ambient)

Module Dimensions

70mm x 55mm x 32mm (L x W x H)

Module Weight (including wiring)

250g

Number of Capacitive Coupler’s

6

Capacitive Coupler Size

80mm x 50mm (L x W)



SKU CT6SFK
Brand CouplerTec
